HEC-103B Non-ferromagnetic Metal Digital Conductivity Meter with Eddy Phase
Products of this series are the first generation of Digital Conductivity Meter designed with eddy phase. These products may be used for distinguishing, grading, and state detecting for non-ferromagnetic metal. These are commonly used in industries of machinery, electric power, aviation, aerospace, nuke, military, etc.
1.APPLICATION FIELDS
- non-ferromagnetic material
- Determining extent of thermal treatment
- Checking thermal damage, material fatigue and crack
- Determining metal purity
- Monitoring of metal homogeneity
- Metal classification Monitoring of strength and hardness Detecting the density of powder metallurgy parts
2.TECHNICAL PARAMETER
| Model Items | HEC-103B |
| Working Freq. | 60KHz and 500KHz, sine wave |
| Measurement range for conductivity | 0.51 %IACS to 112 %IACS, or 0.3 MS/m to 65 MS/m or resistivity 0.01538 Ω·mm²/m to 3.33333Ω·mm²/m |
| Resolution | 0.1 %～0.001 %IACS |
| Measuring precision | ±1%(Temp.0℃~50℃),±0.5%(Temp. 20℃) |
| Lift-off compensation | 0.5mm of φ14 probe; 0.2mm of φ8 probe; |
| Temp. Measuring range | 0℃～+80℃(Temp. resolution0.1℃,Temp. Measuring precision0.5℃) |
| Auto. Compensation | Testing result of conductivity adjusted to the value at temp. 20℃ automatically |
| Working environment | Temp. 0℃～+50℃,Related humidity 0～85%(Non-condensing) |
| Display | Large screen LCD, with back-light designed, can display multiple items of important parameter simultaneously |
| Power supply | Provided lithium ion battery of 3.7V,2200mA/h, continuous working about 12hours |
| Probes | diameter 14 mm working frequency of 60 KHz and diameter 8mm working frequency of 500 KHz of a probe; Probe can be Self replacement. |
| Temp. Probe | Hand-hold surface temperature sensor |
| Reading memory | Save 4000 sets of measuring date |
| PC Communication | RS 232 interface, Baud rate: 2400bps; Date rate:8 |
| Host weight | 0.5KG(Including battery) |
| Host size | 220 mm×95 mm×55 mm |
| Shell | Plastic shell |
3.CHARACTERISTICS
- Beautiful appearance, easy to carry about and grasp, simple and convenient to use.
- Big screen, big character; displaying measured result, working frequency, temperature, temperature coefficient etc. simultaneously.
- Two kinds of switchable frequencies for HEC-103B, 60KHz for aviation industry standard, 500KHz for detecting sheet metal.
- Special temperature coefficient setting and auto calibrating mode, convenient and reliable for user to operate.
- Up to 500μm lift-off compensation design, for maintaining the measuring accuracy when painted, coated or dusty on surface.
- The variety of temperature compensation mode design, combined with temperature coefficient, instruments can ensure the measurement accuracy under different testing temperature.
- With interchangeable probes, the user is able to change probes provided by our company without matching.
- Built-in date memory, can record 4000 sets of test date and important test parameters, you can connect the computer to generate a complete report.
- Two units (MS/m or %IACS) convenient choice, but also can directly switch resistivity in the measurement of interface.
- Two kinds of language selection: Japanese and English.

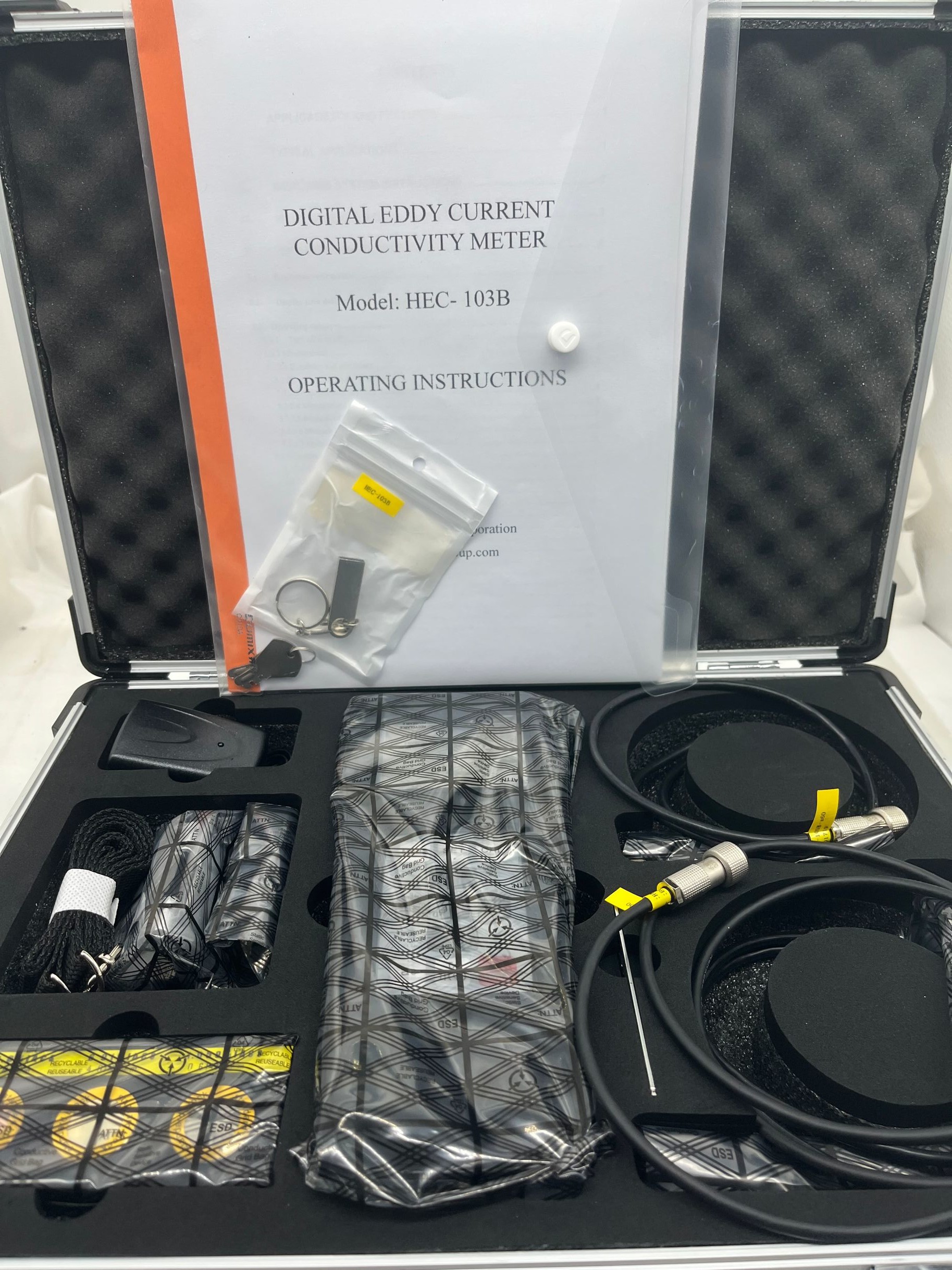

Standard accessories:
Main unit 1pc, communication cable, operation manual, calibration certificate, recharger, instrument stand, U- disk (or optical disk), High impact-resistance, portable box made of aluminum alloy, 3 pieces of standard conductivity blocks, leather protective case

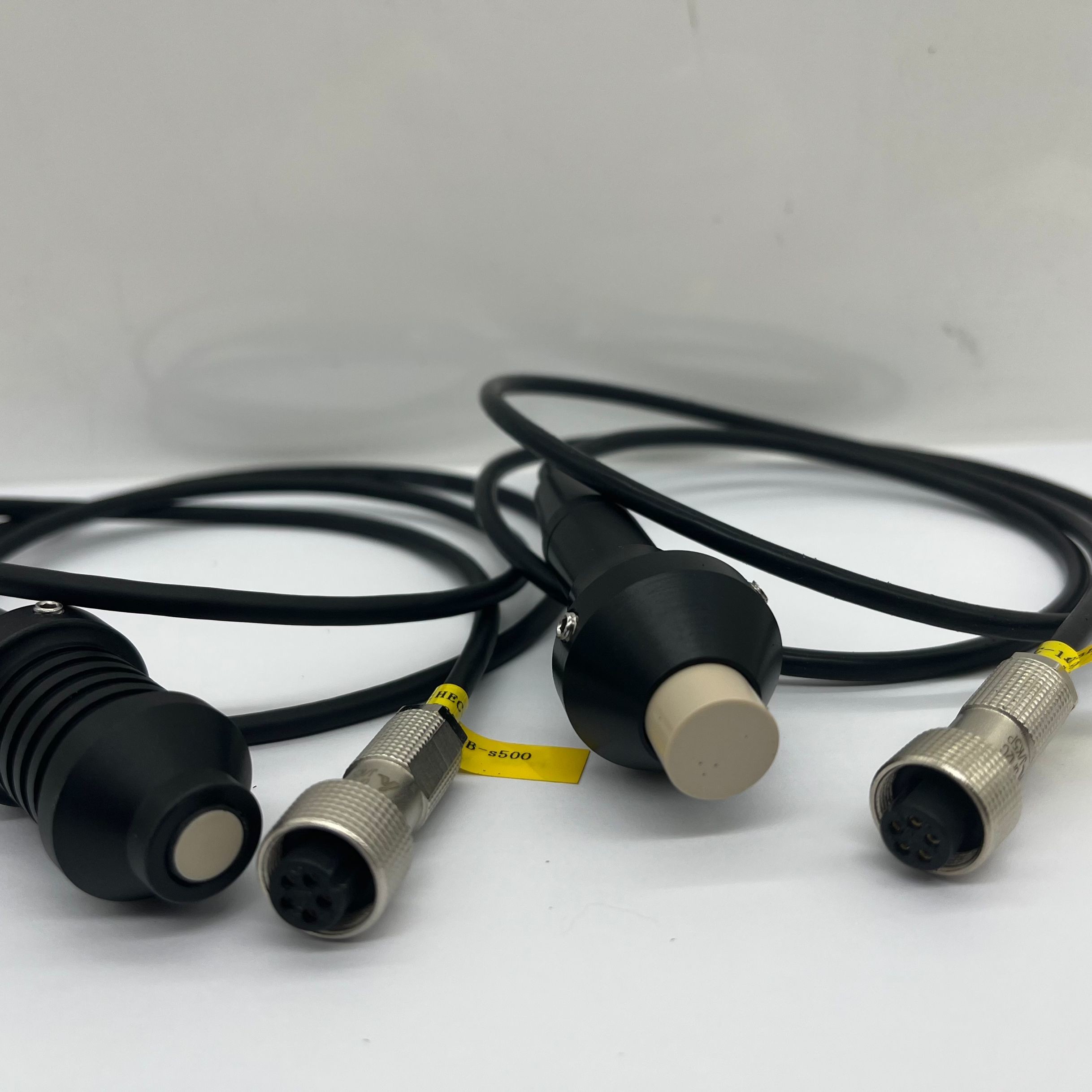

Probe diameter 14 mm working frequency of 60 KHz and probe diameter 8mm working frequency of 500 KHz
Optional accessories:
Conductivity blocks
