Φ400-1100 mm HUATEC X-ray Pipe Crawler HXPC-100B1X

Φ400-1100 mm HUATEC X-ray Pipe Crawler HXPC-100B1X

• The crawler is equipped with false load, and the time is set for 0.2 minute. The crawler can simulate the real load working, such as exposure, moving forward or backward without connecting pipe head. This function enable users to learn how to locate and determine the fault.
• The magnetic receiver has 8 gear ranges, which satisfy the requirements of different diameters.

  Crawler model	HXPC-100B1X
  Applicable pipe inner diameter	Φ400-1100 mm
  Cleaning pipe optimum climbing slope	12°
  controlling method	Magnetic positioning
  output voltage	150-250 kv
  Output current	3 mA
  exposure time	0-3 min
  positioning accuracy	±5 mm
  Travel speed	12 m/min
  Battery voltage / capacity	108V/7AH,108V/12AH
  Non-exposure walking distance	2000m
  Applicable wall thickness	≤34mm
  Crawler Total length mm	2100(car body1100mmshoe550mm)
  Driving mode	Single drive
  focal spot size	2.0*2.0
  X-ray radiation angle	360°*30°
  Operating ambient temperature	-20°C to +75°C
  storage temperature	0°C to +60°C
  Applicable environmental humidity	≤85%
  Battery box weight	21Kg,42Kg
  Generator weight	13kg
  Climbing weight	30kg
  The turning radius of the crawler	＞7D
  Generator type	HUATEC XXGH-2505 ceramic tube

• Unlike controlling the equipments via listening to sounds, manipulators can control the exposure moments and manipulate the X-ray pipeline crawlers to move forward or backward via magnetic orientator.
• Magnetic locators have the following features: higher positional accuracy, strong penetrability, and higher stability. The magnetic transmitter is equipped with electric display.
• The X-ray pipeline crawlers can display the voltage of the battery and directly judge the use of the battery.

HUATEC X-ray Pipe Crawler

Φ400 X-ray Pipe Crawler

1100 mm X-ray Pipe Crawler

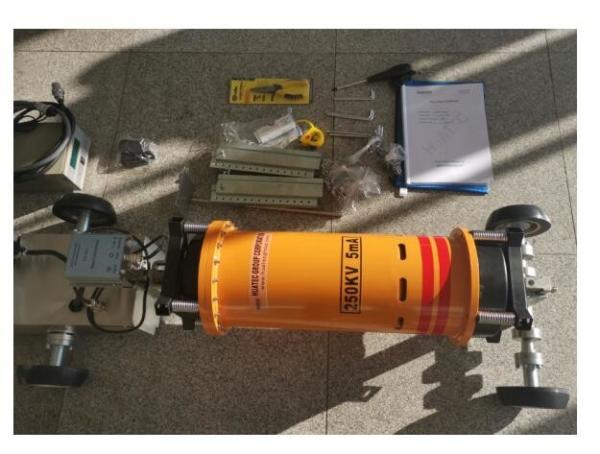

Φ400-1100 mm HUATEC X-ray Pipe Crawler HXPC-100B1X Images
