FJ-6101 х,γ Laboratory Radiation Dose Rate Meter
FJ6101 х,γ radiation meter is specially designed to measure х,γ radiation dose rate in all kinds of radioactive working areas. In comparison with similar meter in china ,this meter has a wider measuring range of dose rate. It has been widely used in hygiene department, environmental protection, metallurgy, petroleum, chemical industry, radioactive laboratories, commodity inspection and etc.
Technical data
| Detector | φ30×25mm,NaI |
| Sensibility | 1µSv/h≥350CPS |
| Energy threshold value | 35keV |
| Dose rate | 0.01～500.00µSv/h |
| Accumulative dose | 0.00µSv～99999µSv |
| Energy range | 40keV～3MeV |
| Energy response | ≤±30%(relative to137Cs) |
| Relative error | ≤±10% |
| Measurement time | 1~250s programmable |
| Alarm threshold | Programmable within range |
| Dose rate | nSv/h,µSv/h,nGy/h,µGy/h |
| Accumulative dose | µSv |
| Counting rate | CPS |
| Power source | type C battery(Two batteries) |
| Power | ≤100mW(not contains backlighting power consumption) |
| Weight | 1.0kg(contain battery) |
| Size | 40cm×20cm×7.5cm |
Feature
- High sensitivity, wide measuring range, good energy response
- High-speed low power consumption microprocessor
- Digital and gauge double display
- English interface display
- LCD digi display
- 20000 group data can be saved
- Dose rate and total doses can be measured
- With two levels of dose rate threshold alarm function .
- Battery Indicator
- Lightweight and ergonomic design of ABS and aluminum alloy shell.
-Protect the operation personnel of long design, standard 40 cm in length, the longest can choose extended to 100 cm.
- Waterproof seal protection case
- Optional USB communication function
- optional bluetooth printer, bluetooth or wifi data transmission.
- optional dual battery model (built-in lithium battery).
Product Tags:
|
|

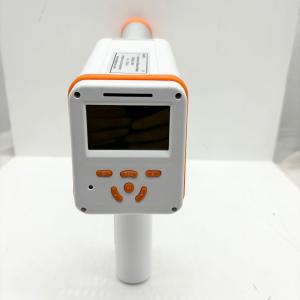

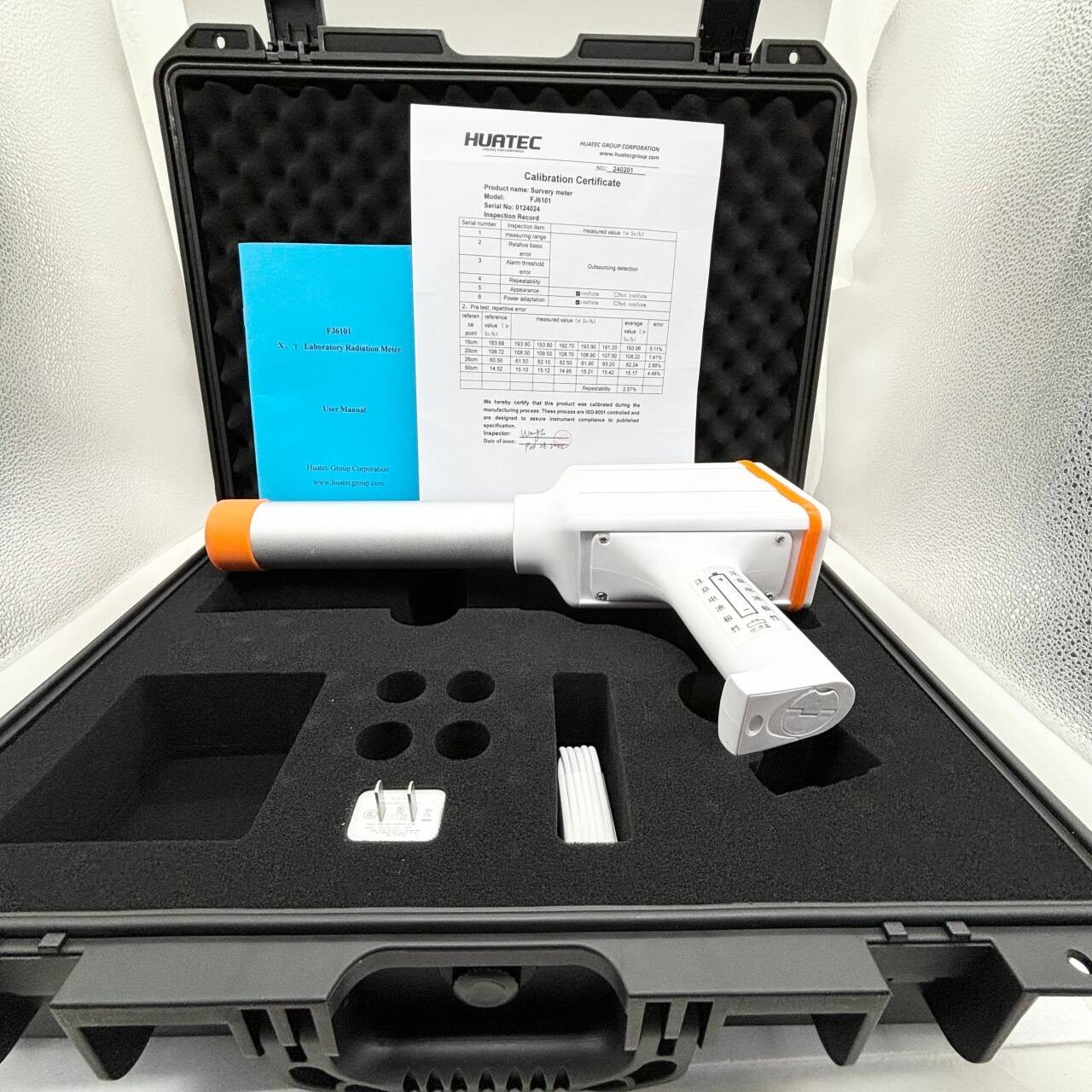

FJ-6101 х、γ Laboratory Radiation Dose Rate Meter Images
|
