Brand Name : HUATEC
Model Number : HD-105A
Certification : CE
Place of Origin : China
MOQ : 1 pc
Price : USD1495/set - USD1559/set
Payment Terms : T/T,Paypal
Supply Ability : 10sets/Month
Delivery Time : 7-10 working days after receipt of your payment
Packaging Details : Carton packing box
Test voltage range : 1KV~50KV
Thickness range : 0.1~35mm
Resolution : 0.1KV
Voltage precision : ±(0.1kv+3%)
Max leak record : 999 maximum
Display : 128*64 LED screen with backlight
Power : ≤6W
Voltage of adapter : Input AC 100-240V Output 12.6V 1A
HD-105A Intelligence Pulsed High Voltage LED screen Protecting Coating Holiday Detector
1.1 What is HD-105A
HD-105A holiday detector is intelligence pulsed high voltage protecting coating quality detector. It install anti-jamming intelligent chip, anti-jamming LED screen and brand new digital control circuit to make a accurately high voltage output ±(0.1KV+3%reading).It can adjust its value of voltage according to the thickness of protecting coating. HD-105A use lithium battery for power source, it is also can be used in field.
1.2 Theory
When high voltage probe brushed pass non conductive coating, If the coating is too thin or metal has leakage or pinhole, the air gap will be punctured and produce spark discharge when pulse high voltage. At same time, detector will record leak number.
1.3 What it can be used on?
The equipment design of HD-105A is advanced, stable and reliable, which can be widely used in chemical industry, oil, rubber and enamel, so it is an essential tool used to detect metal anti-corrosion coating quality.
Parameter
Test voltage range | 1KV~50KV |
Thickness range | 0.1~35mm |
High voltage output | Pulse |
Voltage display | 3 digit |
Resolution | 0.1KV |
Voltage precision | ±(0.1kv+3%) |
Max leak record | 999 maximum |
Way of alarming | Headphone buzzer and light |
Shutdown | Auto and Manual |
Display | 128*64 LED screen with backlight |
Power | ≤6W |
Size | 240mm*165mm*85mm |
Battery | 12V 4400mA |
Working time | ≥12 hours(Max voltage) |
Charging time | ≈4.5 hours |
Voltage of adapter | Input AC 100-240V Output 12.6V 1A |
Probe wire | Close to 1.5m |
Earth lead wire | 2*5m black/black |
Fuse | 1A |
![]() |

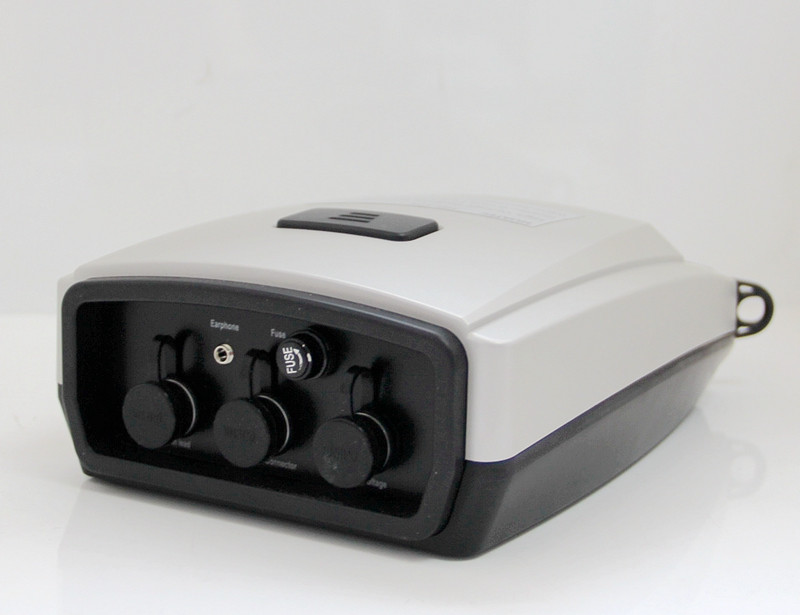

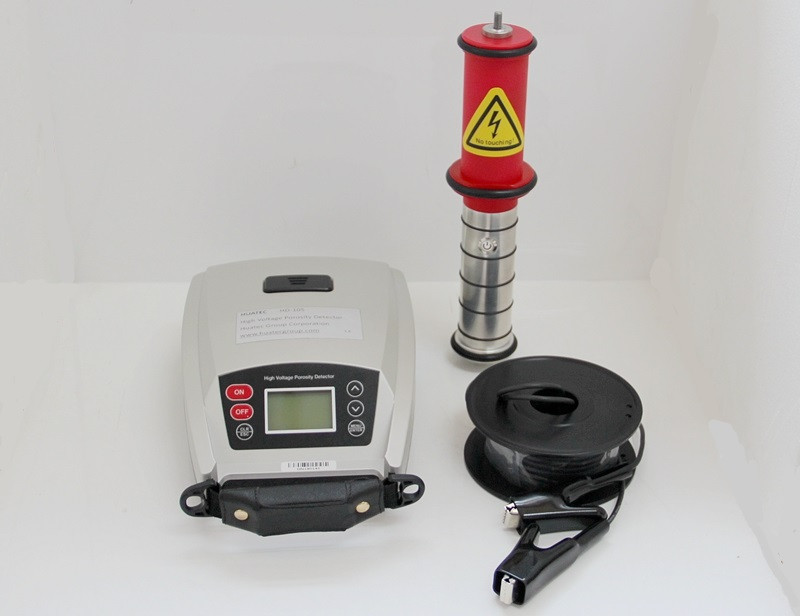

HD-105A Intelligence Pulsed High Voltage LED screen Protecting Coating Holiday Detector Images |
