FJ-3505 Multifunctional Χ Γ Radiation Personal Dose Real-time Alarm Meter

Name: FJ3505 Multifunctional Χ Γ Radiation Personal Dose Realtime Alarm Meter
Brand: HUATEC
Price: 161 USD

Quality FJ-3505 Multifunctional Χ Γ Radiation Personal Dose Real-time Alarm Meter wholesale

Brand Name : HUATEC

Model Number : FJ-3505

Certification : CE

Place of Origin : China

MOQ : 1 pc

Price : USD161/set - USD182/set

Payment Terms : T/T,Paypal

Supply Ability : 10sets/Month

Delivery Time : 7-10 working days after receipt of your payment

Packaging Details : Carton packing box

Detector : GM tube detector with energy compensation

Energy response : GB/T13161-2015 national standard requirements

Dose equivalent rate : Hp(10) 0.1 μSv/h-100mSv/h

Cumulative dose equivalent : Hp(10) 0.0 μSv-99.99 mSv

Cumulative dose equivalent response error : within the range <±15% (137Cs)

Contact Now

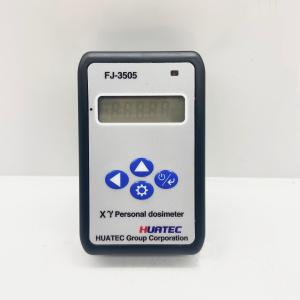

FJ-3505 Multifunctional χ γ Radiation Personal Dose Real-time Alarm Meter

Main introduction

FJ-3505 is a multifunctional χ γ radiation dose real-time measuring instrument with halogen GM counter tube as the detector. It is designed to be worn on the human body to measure the personal dose equivalent HP (10), and it can also be used for radiation field survey and detection. User can set own alarm threshold by FJ-3505.

Technical parameter

Detector	GM tube detector with energy compensation
Energy response	40keV-1.3MeV
Highly sensitive detector, strong anti-interference ability
Can be expanded into a series of products, equipped with wider range, higher sensitivity and other models
Alarm function	There are alarm functions such as dose rate, cumulative dose, working time, etc., and the alarm threshold is continuously adjustable
Data transmission	the measurement data can be transmitted to the computer through the data cable (optional)
Alarm threshold can be set by user
Measuring range	Dose equivalent rate: Hp(10) 0.1 μSv/h-100mSv/h Cumulative dose equivalent: Hp(10) 0.0 μSv-99.99 mSv Cumulative dose equivalent response error: within the range <±15% (137Cs)
Energy response	meet GB/T13161-2015 national standard requirements

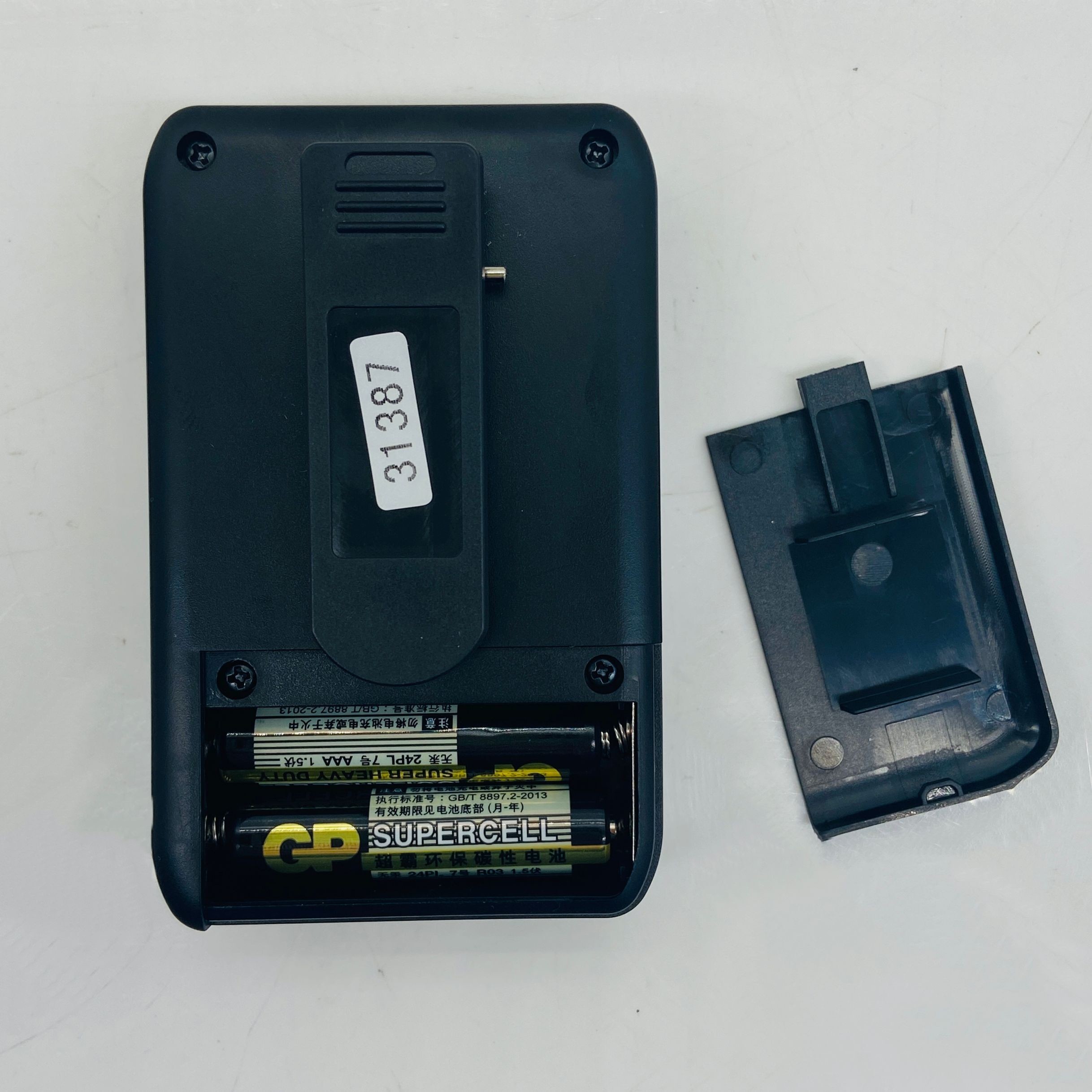

Power consumption	the whole machine is less than 2mW, and the continuous use time of two AAA alkaline batteries is more than 700 hours
Temperature and humidity characteristics	at -10℃--+50℃, the error is ≤±10%; under 35℃, humidity 0-95%RH (+35℃) error ≤±10%

Application

It is suitable for the protection and personal dose monitoring of workers in radioactive applications such as industrial non-destructive testing, isotope applications, nuclear industry, hospitals, railways, civil aviation, and environmental protection.

Performance characteristics

FJ-3505 Multifunctional Χ Γ Radiation Personal Dose Real-time Alarm Meter
