Portable Wire Rope Flaw Detector Ropes With Diameter From 1~300mm

Portable Wire Rope Flaw Detector Ropes With Diameter From 1~300 mm

Specification

• For inspection of ropes with diameter from 1 to 300 mm (0.04" to 11.8") standard size is 10-30mm, other different sensor could be customized.
• Speed along the rope during inspection - from 0 to 6 m/s (0 to 6,54 yards/s)
• Onling detect rope’s flaw like booken,abrasion,corrosion,distortion,skip steel wire etc.
• The test value could display broken quantity and broken area
• USB interface sampling and analysing, online sound alarm and display test value
• Sensor is circle shape, circumference encircle,axial magnetization, make the steel wire rope magnetize instant saturation.
• Sensor is metal shell,waterproof,dustproof, quakeproof, dampproof.
• High stability, reliable feature, high precision, anti-interference, data accuracy
• Software is apply to Windows98／2000／xp／Vista/windows7 many kinds of PC system
• Certificate standard is meet ASTM1571
• Widely use in Mine, sodo, hoisting equipment, elevator, port machinery, cable bridge etc.
• Size 330 x 235 x 190 mm (13" x 9,3" x 7,5 ")
• Weight 15 kg (33 lbs)

Features

• Test range(closed style sensor): Φ1.5—300 mm (standard size is 10-30mm, other different sensor could be customized)
• The relative speed of sensor and the wire rope is 0.0—6.0 m/s, optimal:0.3—1.5 m/s
• The best space of sensor’s guide bushing and wire rope is 2—6 mm, allowable space:0—15mm
• Dual-function: LMA and LF capability
• Speed does not affect readings
• Accurate distance wheel assembly
• Easy to install and re-install
• Easy to handle and fix on the rope
• 3 changeable hall sensor units
• Temperature range -10 +50°C
• PC software control directly, continuously testing rope length more than 10000m
• Power: AC 220V±10％
• Working temperature: -20℃～40℃
• Storage temperature: -40℃～60℃
• Relative humidity: ≤90％RH

applications but not limited with:

Inspection of mining ropes, aerial ropeways (mostly ropes of chairlifts and gondola lifts), guy (suspension) ropes of bridges.

Standard accessories

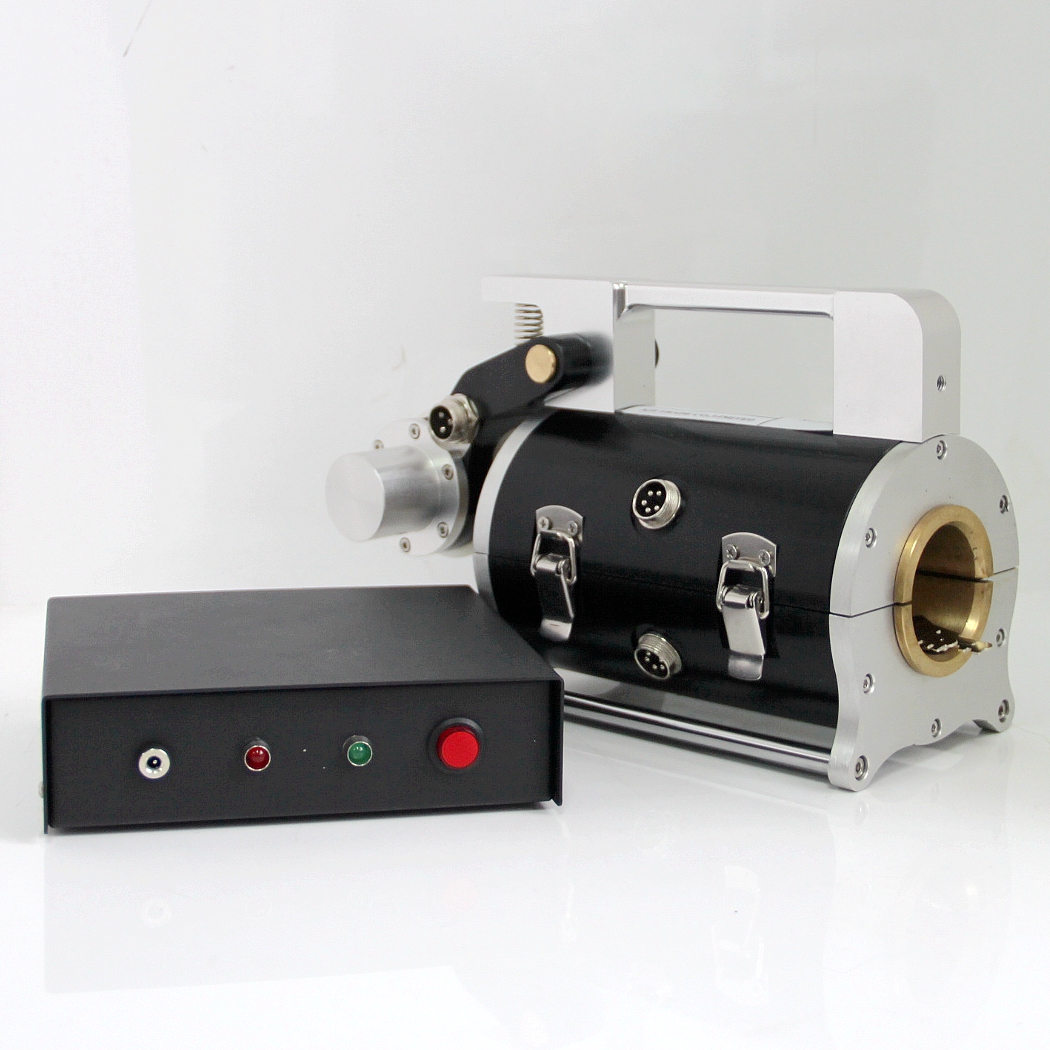

Probe　　 　1 set　　 Real time alarm 　　　 　1pc
　　Signal cable 1pc　　 　 HRD PC analyse software 　 1set
　　laptop(optional)　 1pc 　 　Communication cable 　 1pc
　　Charger　　　　1pc Tool 1set
Instruction manual 1set　

Related product:

More wire ropes sensor (open style) is mainly use on elevator, the test value is the flaw’s total amount.

Standard size is 8-20mm, other size could be customized(max size is 70mm)

1mm Wire Rope Flaw Detector

300mm Wire Rope Flaw Detector

Portable Wire Rope Flaw Detector

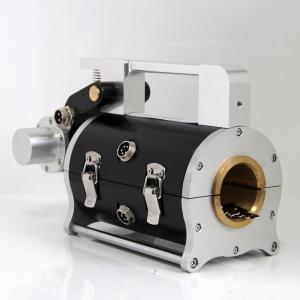

Portable Wire Rope Flaw Detector Ropes With Diameter From 1~300mm Images
