carbon steel IIW V1 Calibration Block Dutch test

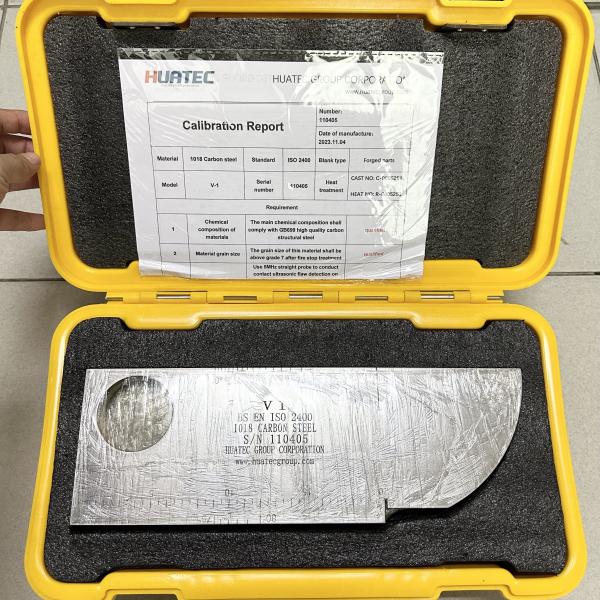

Name: carbon steel IIW V1 Calibration Block Dutch test
Brand: HUATEC
Price: 1 USD

Quality carbon steel IIW V1 Calibration Block Dutch test wholesale

Brand Name : HUATEC

Model Number : IIW V1

Place of Origin : CHINA

MOQ : 1pc

Price : USD

Payment Terms : T/T, Western Union

Supply Ability : 500PCS

Delivery Time : 5-8 working days

Packaging Details : Carton

Material : carbon steel 1018

Standard : ISO2400-1972E

Dimensions : 25.0 mm x 100.0 mm x 300.0 mm

Warranty : 12 months

Contact Now

IIW V1 calibration block

Standard: ISO2400-1972E

IIW test block (V-1 test block) is also called Dutch test block. It is an international standard test block approved by the International Welding Institute (IIW) and recommended by the International Organization for Standardization (ISO). The shape and size are shown in Figure 1-1:

Block Type	Standard	Specification	Material
IIW-Type 1 Test Block	ISO2400-1972E ASTM E164 EN 1223	Metric Dimensions :25.0 mm x 100.0 mm x 300.0 mm 100.0 mm radius, 3 mm diameter hole, 6.0 mm deep x 2.0 mm wide slot. 25.0 mm radiussed slot x 1.5 mm deep x 3.0 mm wide. Inch Dimensions: 1.0" x 4.0" x 12.0" 4.0" radius, 2.0" and 0.060" diameter hole, 0.240" deep x 0.080" wide slot 1.0" radiussed slot x 0.060" deep x 0.120" wide	1018 Steel
			304/316 Stainless Steel
			7075-T6 Aluminum
			Duplex stainless steel 2205

Test Report
HUATEC strictly guarantees product quality, and promises to provide a corresponding test report for each test block sold, which records the test block specifications, materials, and test standards. If you have special requirements for the test report, please contact us.

carbon steel IIW V1 Calibration Block Dutch test
