HDL-350 NDT Laboratory Film Dryer Non Destructive Testing Equipment

  • 1
  • 2

Brand Name : HUATEC

Model Number : HDL-350

Certification : CE

Place of Origin : China

MOQ : 1 SET

Price : USD1025-USD1160/SET

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10 Sets/Month

Delivery Time : 7-10 working days after receipt of your payment

Packaging Details : Wooden box packaging

dry sheet flow : →water washing → drying

delivery width : 360mm

running time : 60S per (14 "X17")

dry weight : 8 x 350mm (4 * 14), 270 pieces per hour

power : 200-240V 50/60Hz 5A

water consumption : 2 liters / minutes of film operation

Contact Now

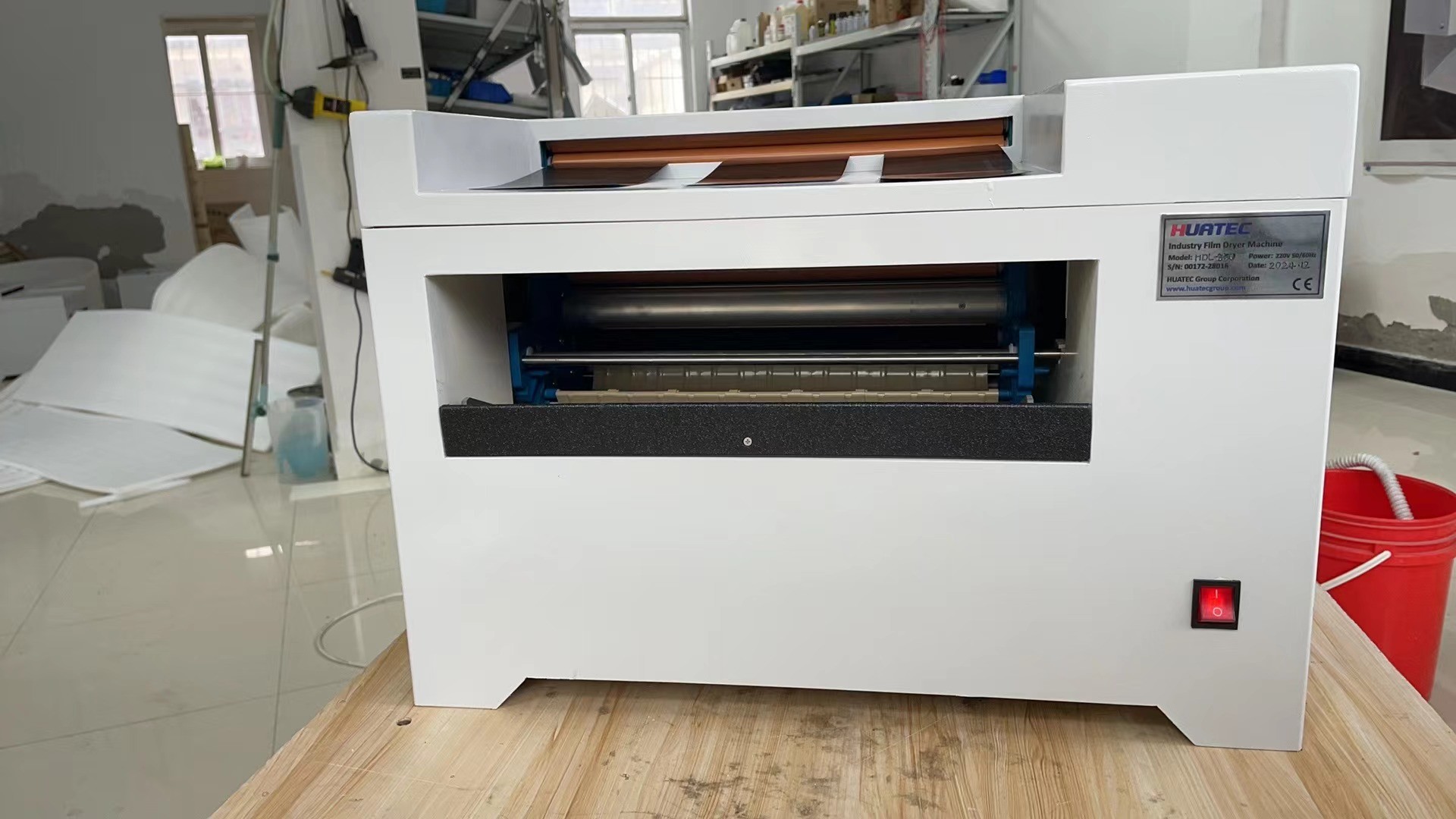

HDL-350 NDT Laboratory Film Dryer

HDL-350 NDT film dryer is a kind of automatic drying equipment designed to solve the problems of laboratory, NDT and hand washing film.

Working principle

According to the principle of the baking sheet of the fully automatic washing machine, put the hand washed film on the sheet feed plate. After the film sensor detects the film, the machine's transmission mechanism begins to run and will automatically send the film into the dryer, and the PTC drying component below starts to blow the hot air directly onto the film, and the film is dried by drying the suction shaft. After the water absorption and hot air blow drying, the film is taken directly from the chip outlet. The whole process can only be obtained for 45 seconds, and the staff can get a dry film directly to evaluate the film.

Technical parameter

dry sheet flow →water washing → drying
delivery width 360mm
running time

60S per (14 "X17")
dry weight

8 x 350mm (4 * 14), 270 pieces per hour.
power

200-240V 50/60Hz 5A
water consumption

2 liters / minutes of film operation
volume

570 x 320 x 395 x (long * width * height)

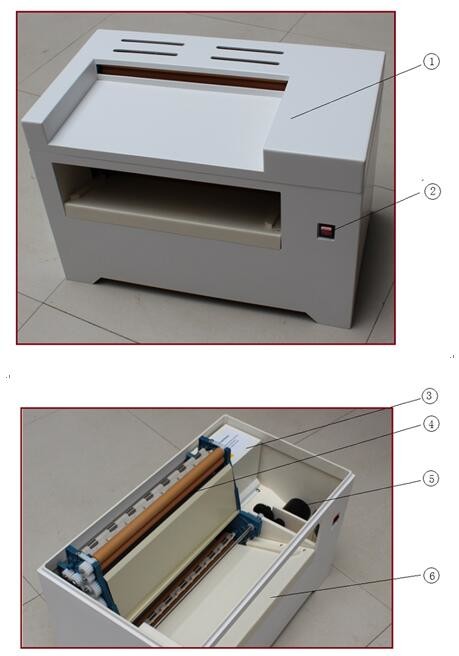

1 machine cover 2 power switch 3 heating air 4 drying axle rack 5 drive motor

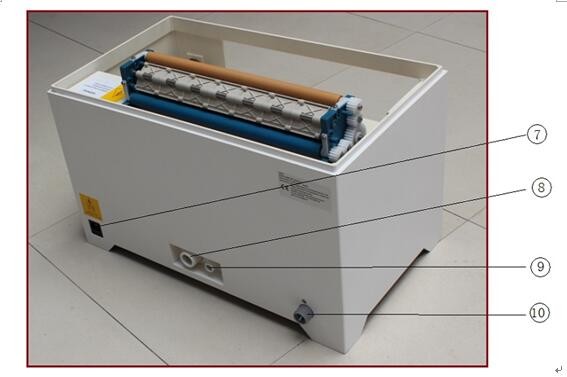

6 sending sheet plate 7 power outlet 8 overflow outlet 9 drain port 10 inlet electromagnetic valve interface

HDL-350 NDT Laboratory Film Dryer Non Destructive Testing EquipmentHDL-350 NDT Laboratory Film Dryer Non Destructive Testing EquipmentHDL-350 NDT Laboratory Film Dryer Non Destructive Testing EquipmentHDL-350 NDT Laboratory Film Dryer Non Destructive Testing EquipmentHDL-350 NDT Laboratory Film Dryer Non Destructive Testing Equipment
