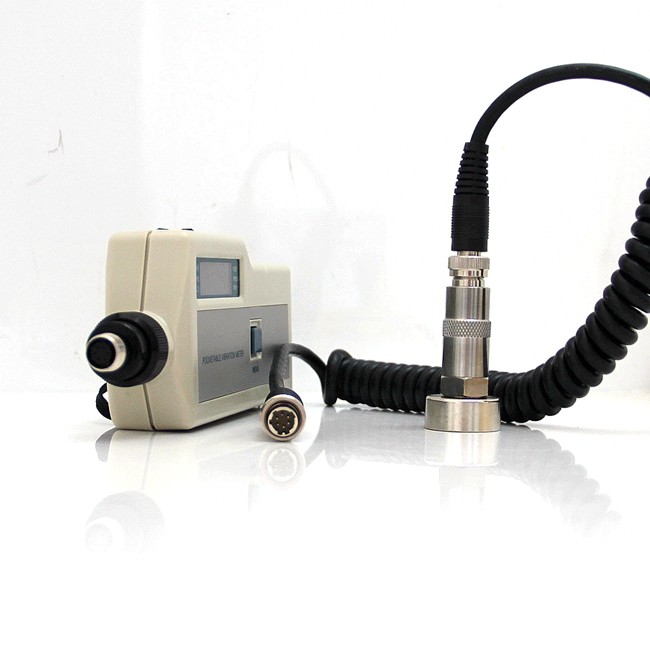

Pocket 9V Vibration Analyzer , 10HZ - 1KHz Temperature Instrument HG-6500 Series
Description:
HG-6500 Pocket vibration (temperature) instrument, mainly used in machinery and equipment vibration displacement, velocity (intensity) and the acceleration, temperature parameters of the measurement instrument in the bearing housing using the measured data, the control of international standard ISO2372 , Or the use of enterprises, the standard machine, you can determine the equipment (fans, pumps, compressors, motors, etc.) in which the current state (well, pay attention or dangerous, etc.)
Specifications:
Sensors: one rotary shear accelerometer Split charge amplifier built-in shear accelerometer
Range: Acceleration 0.1 ~ 199.9m/s2 (single peak) (5 or 10 ~ 1KHz; 1K ~ 10KHz) Speed of 0.1 ~ 199.9mm / s (RMS) (5 or 10 ~ 1KHz) Displacement of 0.001 ~ 1.999mm (peak) (5 or 10 ~ 1KHz) Temperature 0 ℃ ~ 400 ℃
Accuracy: 5% ± 2 vibration words Temperature 1% ± 1 word
Display: LCD display three and a half
Maintain the characteristics: measurement value is automatically maintained, automatic shutdown delay
Signal Output: AC 2V peak (full scale and the load is greater than 10K ohms)
Power: 9V laminated battery 1 can be used continuously 25 hours
Body volume: 185mm × 68mm × 30mm
Weight: 200g
| Model | Low frequency and temperature | Function | Frequency range |
| HG-6500AN | Standard (I) | Acceleration, Velocity, Displacement | 10Hz ~ 10KHz |
| HG-6500AL | Low frequency (I) | Acceleration, Velocity, Displacement | 5Hz ~ 10KHz |
| HG-6500ANC | Vibration and temperature(I) | Acceleration, Velocity, Displacement, Temperature | Vibration and temperature(I) |
| HG-6500ALC | Low frequency and temperature(I) | Acceleration, Velocity, Displacement, Temperature | 5Hz ~ 10KHz |
| HG-6500BN | Standard | Acceleration, Velocity, Displacement | 10Hz ~ 10KHz |
| HG-6500BL | Low frequency | Acceleration, Velocity, Displacement | 5Hz ~ 10KHz |
| HG-6500BNC | Vibration and temperature | Acceleration, Velocity, Displacement, Temperature | 10Hz ~ 10KHz |
| HG-6500BLC | Low frequency and temperature | Acceleration, Velocity, Displacement, Temperature | 5Hz ~ 10KHz |
