Leakage Damage Detection Non Destructive Testing Equipment For Geomembrane

Leakage damage detection Geomembrane (impervious membrane) leakage damage detector

General introduction

Geomembrane leak detection equipment, at the scene of the absorption adopt a generation of user feedback, on the basis of the integration of various conditions around the application experience, further optimization, by testing the large, improve the core component of pressure, make the output voltage of up to 50 kv, according to check the thickness of the geomembrane, conductivity, and soil dry and wet sensitivity can fit match, with better easily detect funnelled position, and continue to alarm prompt.This system equipment still has good portability and operability. After the upgrade, the output is more linear and the detection of leakage point is more efficient. In view of the large battery capacity doubling to 4400AMH, it is more suitable for long-term continuous construction in the field.

Applicable occasion

Leakage damage detection of landfill, tailings dam body leakage damage detection, landscape lake leakage damage detection, aquaculture pond leakage damage detection, sewage storage pond leakage damage detection, chemical solid waste treatment pond leakage leakage leakage

Specific application occasion

Geomembrane (impervious membrane) leakage damage detector is suitable for landfill leakage damage detection, tailings dam leakage damage detection, landscape lake leakage damage detection, aquaculture pond leakage damage detection, sewage storage tank leakage damage detection and other construction leakage detection. Applicable types of geomembrane are: HDPE LDPE PVC polypropylene asphalt geomembrane conductive supporting geomembrane any other electrically isolated materials. The types of soil film roadbed are: compacted clay with suitable conductivity, conductive concrete, suitable conductive GCL, conductive aluminum foil of soil engineering material, etc.

Main technical performance:

1. Output high voltage: 0.6kV ~ 50KV (stepless continuous adjustable)

2. Detection thickness: 0.1~35mm (affected by the soil environment on site)

3. Direct indication of output high voltage value

4. Variable sensitivity

5. Battery: 12V/2200mA,rechargeable Li-ion battery

6. Power consumption: ≤5W

7. Main engine volume: 220 × 130 × 88 mm

8. With background light

9. Instantaneous power on, automatic power off and shutdown

10.3 LIQUID crystal display output voltage, full touch panel

11. Alarm: Peak-ringing alarm

impervious membrane non destructive testing equipment

geomembrane non destructive testing equipment

leakage damage detection ndt equipment

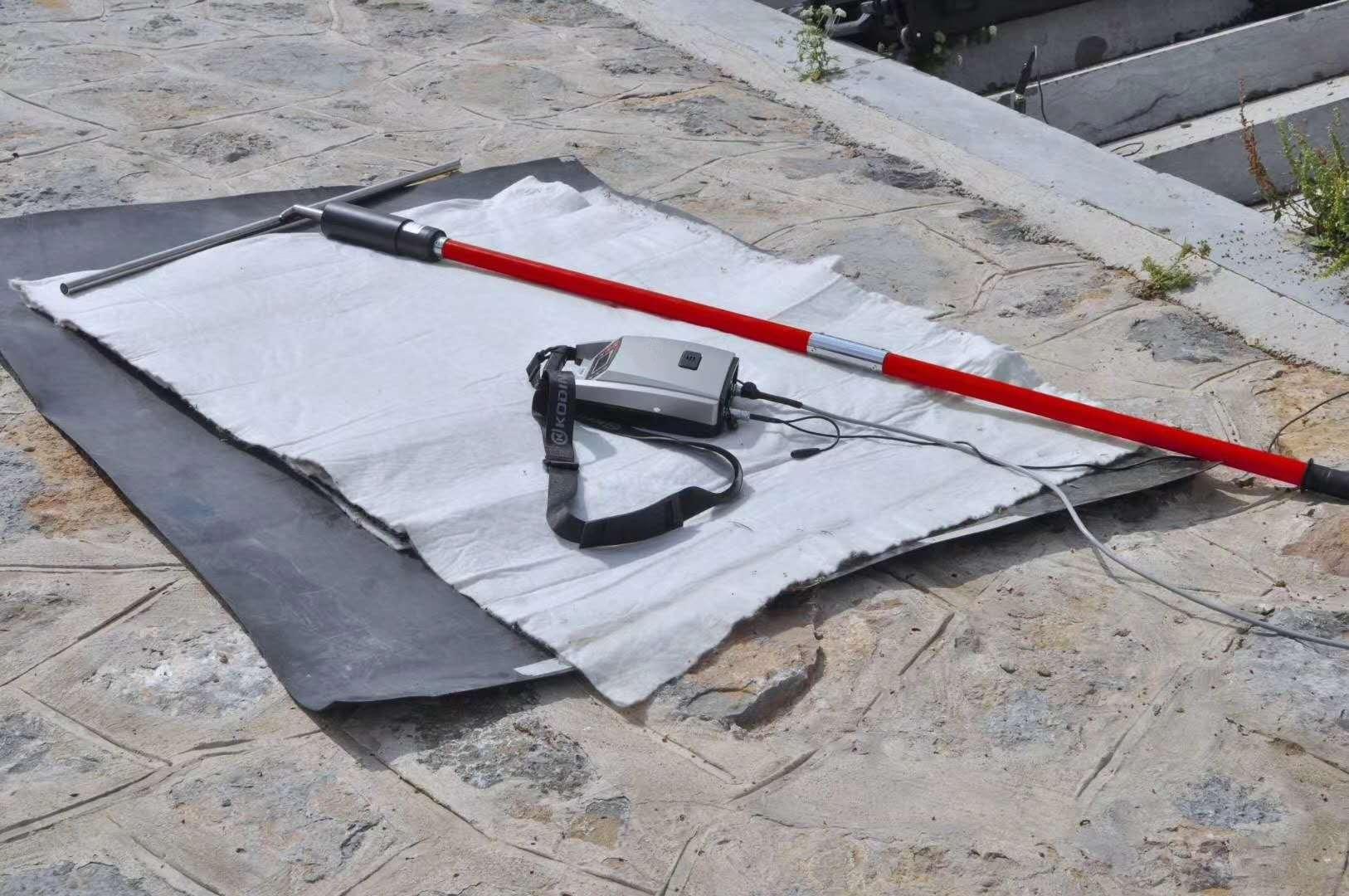

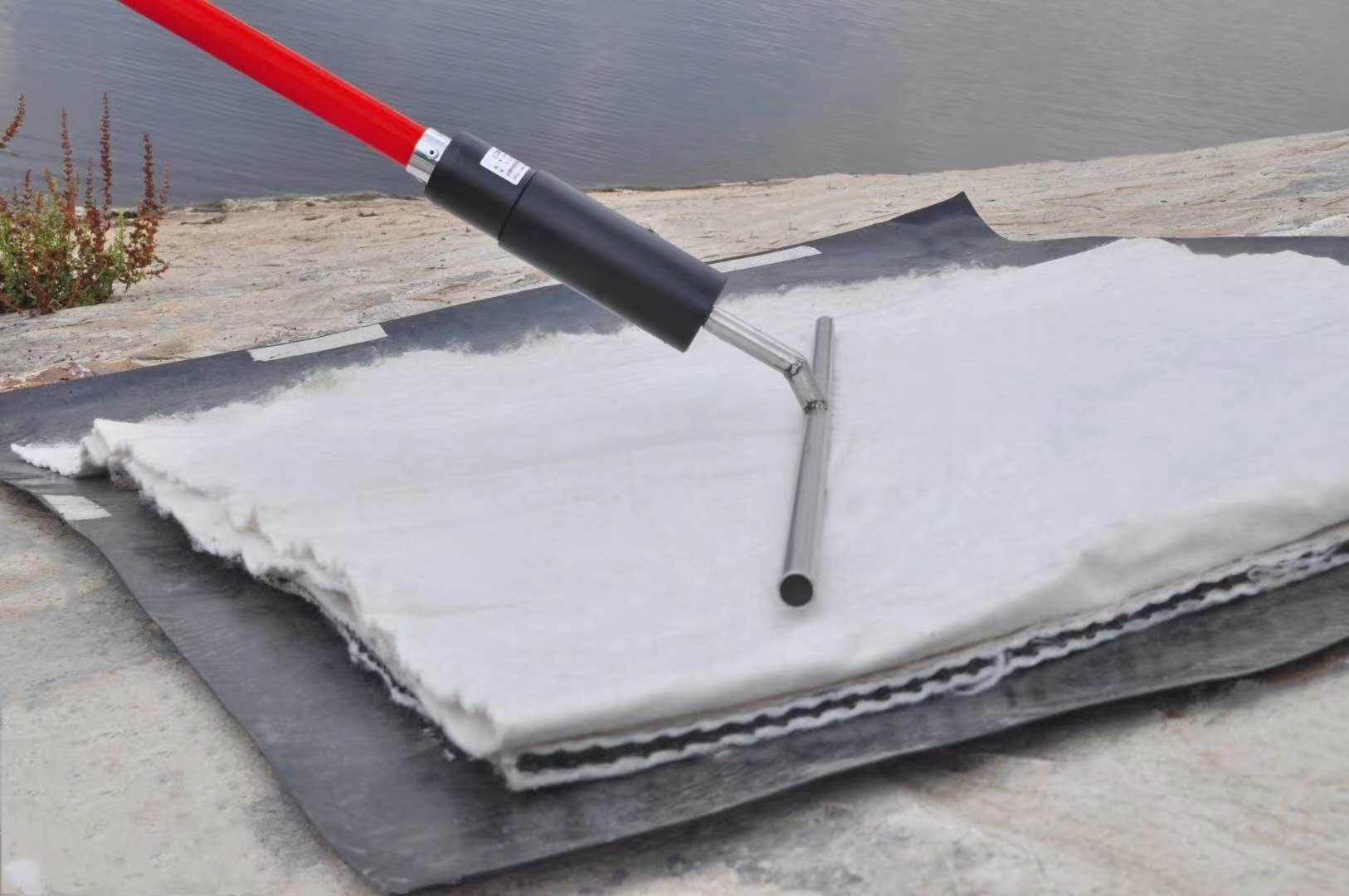

Leakage Damage Detection Non Destructive Testing Equipment For Geomembrane Images
