Real Time Vibrationmeter Spectral Chart Portable Vibration Meter For Industrial Fields

  • 1
  • 2
  • 3

Brand Name : HUATEC

Model Number : HG-6380

Certification : ISO，CE，Gost

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 100 sets per month

Delivery Time : 3-7 days

Packaging Details : in High quality carton

Product name : Vibration Meter

Model : HG-6380

Testing range (Metric) : 0.1 ~ 205.6 m/s2(peak)

Frequency resolution : 0.25Hz

Contact Now

For Industrial Fields Real-Time Vibrationmeter Spectral Chart Portable Vibration Meter

HG-6380 uses piezoelectric acceleration transducer to convert vibration signal into electric signal. Results including RMS of velocity values, peak-peak value of displacement, peak values of acceleration or real-time spectral charts are displayed or printed out. It can not only measure the three parameters, but also rotational speed. The vibration meter is designed to test conventional vibration, especially the vibration test in rotating and reciprocating machines. It can test the acceleration, velocity, and displacement of vibration as well as rev (or inherent frequency), also perform simple failure diagnosis. The technical specifications of HG-6380 comply with the requirements of GB 13823.3. HG-6380 is widely used in machinery, power, metallurgy, automobile and other industrial fields.

Model name HG-6380
Testing range (Metric) Acce: 0.1~205.6 m/s-(peak)
Velo: 0.1 ~ 400.0 mm/s(RMS)
Disp: 0.001~9.0 mm(peak-peak)
Testing range (Imperial) Acce: 0.01~22.00 g(peak)
Velo: 0.01~ 15.75 in/s(RMS)
Disp: 0.1~ 356.3 mil(peak-peak)
Freq range Acceleration: 10Hz~200Hz, 10Hz~500Hz,10Hz~1KHz, 10Hz- 10KHz Velocity: : 10Hz~1KHz
　 Displacement: 10Hz~500Hz
Frequency resolution 0.25Hz
Data memory 100 × 80 pieces of data and 100 spectrums
Software Yes
Temp o℃~40℃
Tolerance ±5%
Speed measuring range 30~300000 rpm corresponding to 0.5~5000Hz
Measuring distance 0.15~1m
Display TFT 320×200 pixels with RGB
Data interface USB
Overall dimensions 212×80×35
Printer Integrated thermal
Weight 320g
Battery Rechargeable Li battery,1500mAh
Continuous working time About 50h

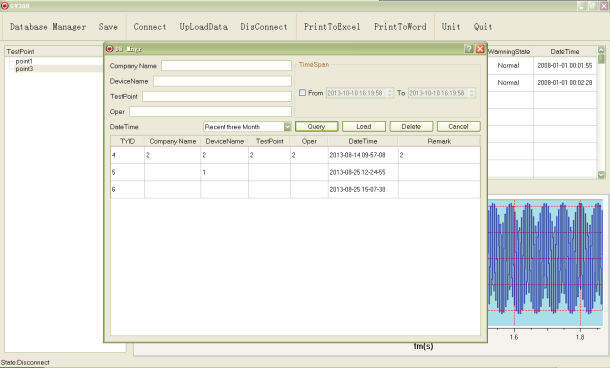

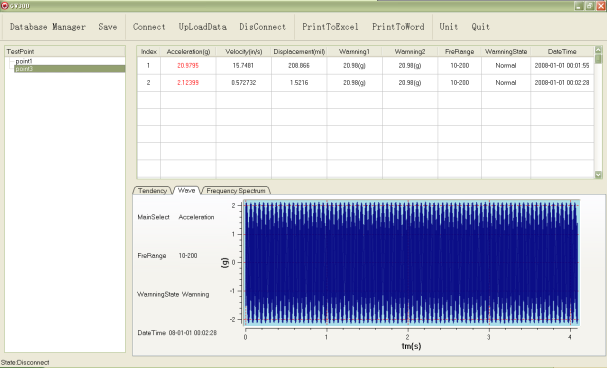

PC software sample

Real Time Vibrationmeter Spectral Chart Portable Vibration Meter For Industrial Fields

Real Time Vibrationmeter Spectral Chart Portable Vibration Meter For Industrial Fields

Standard delivery
Main unit. 1pc
Power Adapters
(input:220V/50Hz, output:9V/1000mA) 1pc
Power Adapters
(input:110V/50Hz,output:9V/1000mA) 1pc
Piezoelectric sensors 1pc
Magnetic seat (with 2 bolts) 1pc
Manual 1pc
Package case 1pc

Optional accessories
Speed transducer (Lacer)
PC Software
Communication cable 1pc
Probe

Real Time Vibrationmeter Spectral Chart Portable Vibration Meter For Industrial Fields

Real Time Vibrationmeter Spectral Chart Portable Vibration Meter For Industrial Fields

Real Time Vibrationmeter Spectral Chart Portable Vibration Meter For Industrial Fields
