SRT-5100S LCD Digital Surface Profile Gauge With Separate Cable Probe

Name: SRT5100S LCD Digital Surface Profile Gauge With Separate Cable Probe
Brand: HUATEC
Price: 472.00 USD

Brand Name : HUATEC

Model Number : SRT-5100S

Certification : CE

Place of Origin : China

MOQ : 1 SET

Price : US$472.00 - 535.00/set

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10 Sets/Month

Delivery Time : 3-5 working days after receipt of your payment

Packaging Details : Blue ABS box+Outer carton packaging

Display : LCD

Range : 0 ~ 800 ɥm/29.5 mils

Accuracy : ±5%or±5ɥm,(whichever is the greater)

Resolution : 0.1ɥm/ 1ɥm

Power Supply : 4x1.5V AAA(UM-4)Battery

Operating : Temperature :0℃ ~ 50℃

Principle : Inductance Type

Contact Now

SRT-5100S Surface Profile Gauge with Separate Cable Probe

Application

This Digital Surface Profile Gauge is a handheld gauge for fast and accurate measurement of the peak-to-valley height of the surface profile of blast cleaned surfaces. It is widely used in field of blast cleaned surface measurement.

Specification

Display	LCD
Range	0 ~ 800 ɥm/29.5 mils
Accuracy	±5%or±5ɥm,(whichever is the greater)
Resolution	0.1ɥm/ 1ɥm
Resolution	0.1mils
Principle	Inductance Type
Operating	Temperature :0℃ ~ 50℃
Conditions	Humidity :< 80% RH
Power Supply	4x1.5V AAA(UM-4)Battery
Dimensions	126x65x28mm
Weight	280 g
Standard Accessories	Main Unit
	Sensor
	Standard Sample Plate
	Carrying Case
	Operation Manual
Optional Accessories	USBCable with Software
Optional Accessories	Blue tooth Adapter with Software

Feature

* It meets the standards of ASTMD-4417-B, IMOMSC.215(82), SANS5772, US Navy NSI 009-32, US Navy PPI-63101-000. Suitable for the laboratory and for use in harsh field conditions. Accurate, immediate and repeatable results.
* The tungsten carbide tip will last for up to 20,000 readings and can then be easily replaced by the user in the field. Cost per test is significantly lower than other test methods.
* Small in size, light in weight and easy to use.
* Manual or automatic power off.
* Metric/Imperial Conversion.
* With average calculation function.
* Separate Probe.
* Use USB data output to connect with PC.
* Provide Blue tooth data output choice.

SRT-5100S LCD Digital Surface Profile Gauge With Separate Cable Probe

Product Tags:

LCD digital surface profile gauge

non destructive digital surface profile gauge

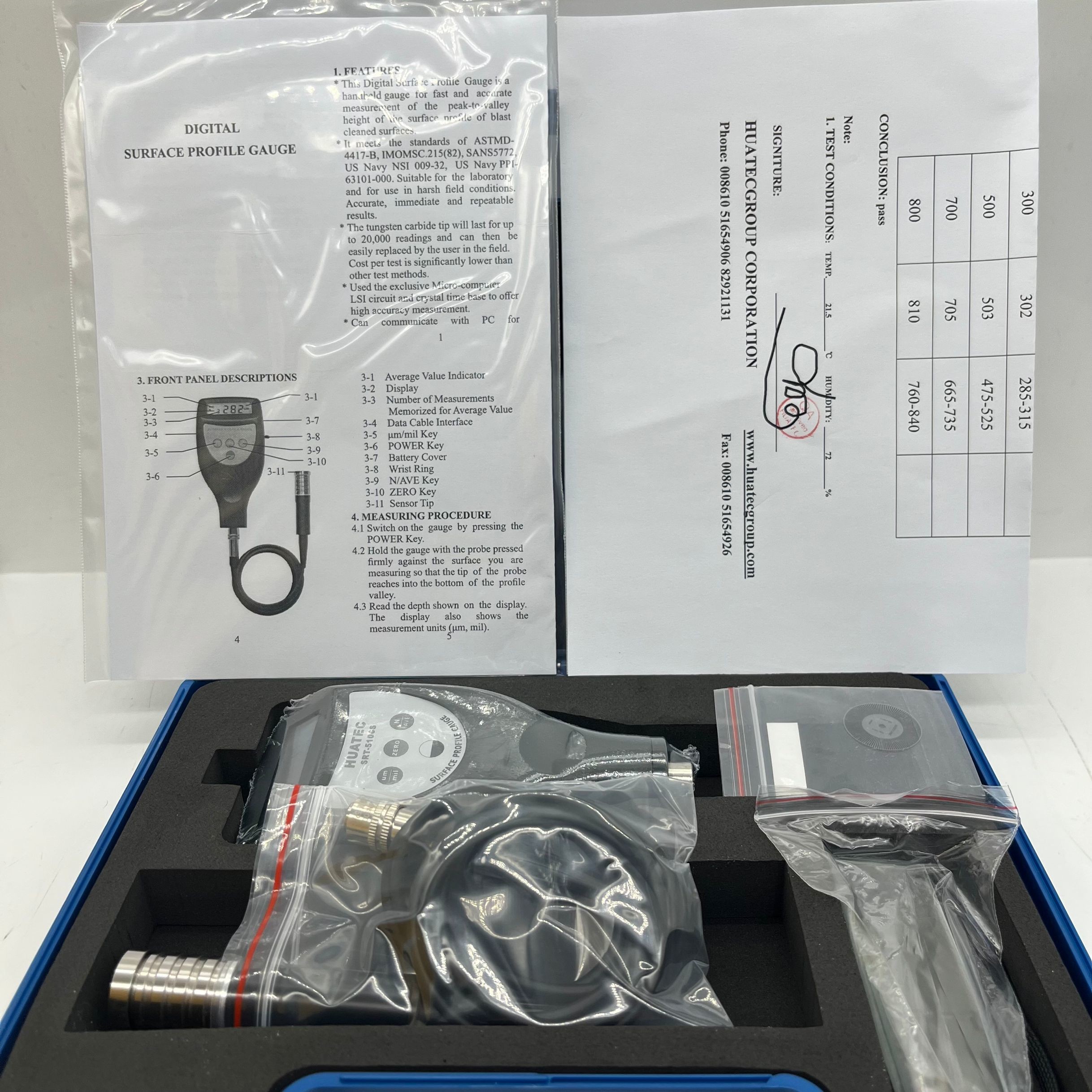

SRT-5100S LCD Digital Surface Profile Gauge With Separate Cable Probe Images
