HGS-911HD FFT Bearing Vibration Analyzer Data Collector Balancer

  • 1
  • 2
  • 3

Brand Name : HUATEC

Model Number : HGS-911HD

Certification : CE

Place of Origin : China

MOQ : 1 SET

Price : USD2277-USD2575/SET

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10 Sets/Month

Delivery Time : 7-10 working days after receipt of your payment

Packaging Details : aluminum alloy box+Outer carton packaging

Noise Level (without vibration input) : ACC<0.25 m/s2, VEL<0.5mm/s, Disp<1m

Frequency response accuracy : 5% + 2 digits

Rechargeable Li-ion battery : Automatic power off, >20 hours operation time

Operation temperature range : 0 - 50°C

Rotation speed measurement range : 10-60000 RPM

Storage : 200 sets of ID, acceleration, velocity, displacement, envelope & spectrum

Size : 150 x 70 x 25 (mm)

Contact Now

HGS-911HD Bearing Vibration FFT Analyzer Data Collector Balancer

HGS911HD is a small sized economical vibration Spectrum analyzer & data collector. It can be used for overall vibration measurement, Spectrum analysis. Measurement of high frequency acceleration envelope makes it very effective for bearing fault detection. The data can be sent to computer for database and trending analysis.

It is also a low-cost, easy-to-use balancing meter with the measurement of Rotation speed RPM, Amplitude & Phase measurement.

Specification:

  • Maximum measurement range / Resolution / frequency range (may change):
Parameter

Maximum

Measurement Range

Maximum

Resolution

 Frequency Range
Displacement Peak-Peak value 2 mm 1 micron 10 – 500Hz
Velocity RMS value 200mm/s 0.1 mm/s 10 – 1000Hz
Acceleration Peak value 180m/s2 0.1 m/s2 10 – 15000Hz
High Frequency Acceleration Envelope 20unit 0.1unit 5Hz-2kHz #

# Note: Demodulated from 15kHz-40kHz

Features:

  • Easy to use FFT spectrum analyzer, 400 lines
  • Measurement of high frequency acceleration envelope makes it a very effective bearing fault detector
  • Download from computer database point / location ID & upload overall value to database for trending
  • Standard condition monitoring software MCMe3
  • Parameter selection of Acceleration, velocity, displacement and acceleration envelope for FFT.

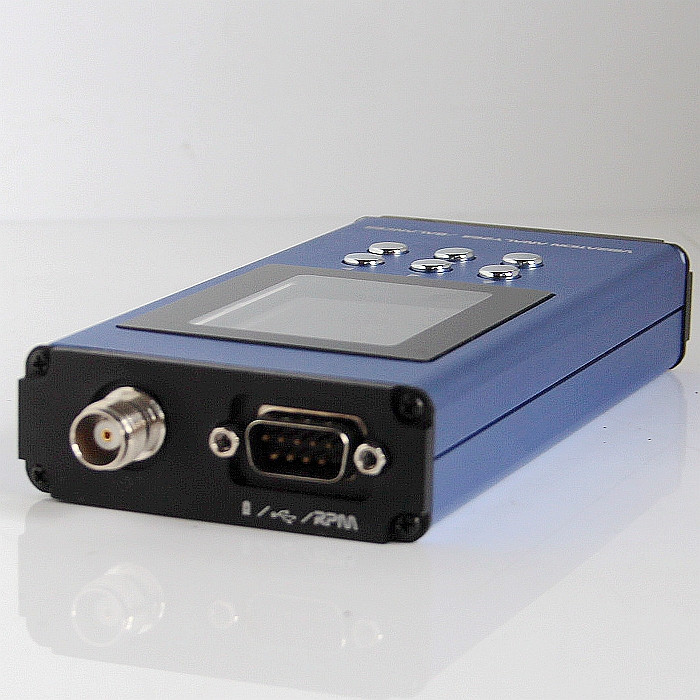

  • USB 2.0 interfaces to computer
  • Date/Time & Battery Status Display
  • True RMS measurement
  • RPM, Amplitude, Phase measurement for balancing
  • Accuracy of vibration measurement:
  • *Noise Level (without vibration input): ACC<0.25 m/s2, VEL<0.5mm/s, Disp<1m
    *Frequency response accuracy: 5% + 2 digits
    *Non-linearity: 5% + 2 digits
  • Rechargeable Li-ion battery, Automatic power off, >20 hours operation time
  • Operation temperature range: 0 - 50°C

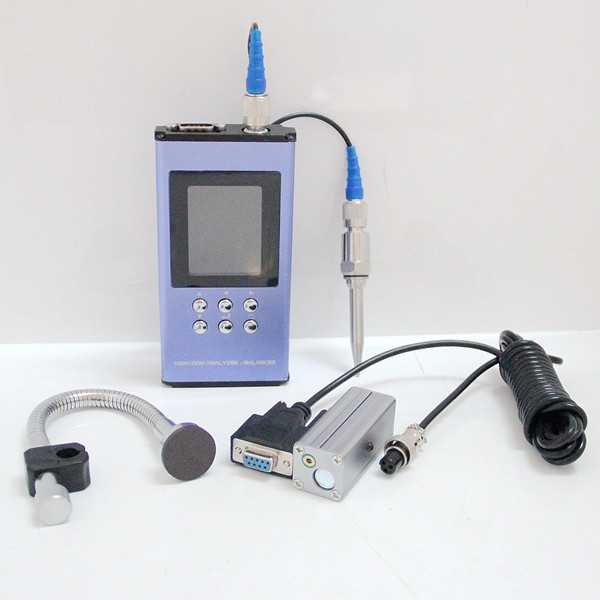

  • Pickup: Accelerometer with extension stinger and magnetic mount, Optional tacho-sensor
  • Optional 1 or 2 accelerometers. For 2 accelerometers, a mechanical switch provided.
  • Rotation speed measurement range: 10-60000 RPM
  • Storage: 200 sets of ID, acceleration, velocity, displacement, envelope & spectrum
  • Size: 150 x 70 x 25 (mm)
  • Weight: 320 gram (including battery)HGS-911HD FFT Bearing Vibration Analyzer Data Collector BalancerHGS-911HD FFT Bearing Vibration Analyzer Data Collector BalancerHGS-911HD FFT Bearing Vibration Analyzer Data Collector BalancerHGS-911HD FFT Bearing Vibration Analyzer Data Collector Balancer
