HRL50B Ndt Equipment Rebar Diameter Corrosion Locator Concrete Thickness Test

Name: HRL50B Ndt Equipment Rebar Diameter Corrosion Locator Concrete Thickness Test
Brand: HUATEC
Price: 2100 USD

Quality HRL50B Ndt Equipment Rebar Diameter Corrosion Locator Concrete Thickness Test wholesale

Brand Name : HUATEC

Model Number : HRL50B

Certification : CE

Place of Origin : China

MOQ : 1 SET

Price : USD2100-USD2520/SET

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10 Sets/Month

Delivery Time : 7-10 working days after receipt of your payment

Packaging Details : Blue ABS box+Outer carton packaging

Bar diameter application range(mm) : Φ6 – Φ50

maximum value permissible error of Bar diameter : ≤±1

first measuring range (mm) : 6 - 90

second measuring range (mm) : 7-180

Work temperature : -10 - +40℃

relative humidity RH : < 90%

Contact Now

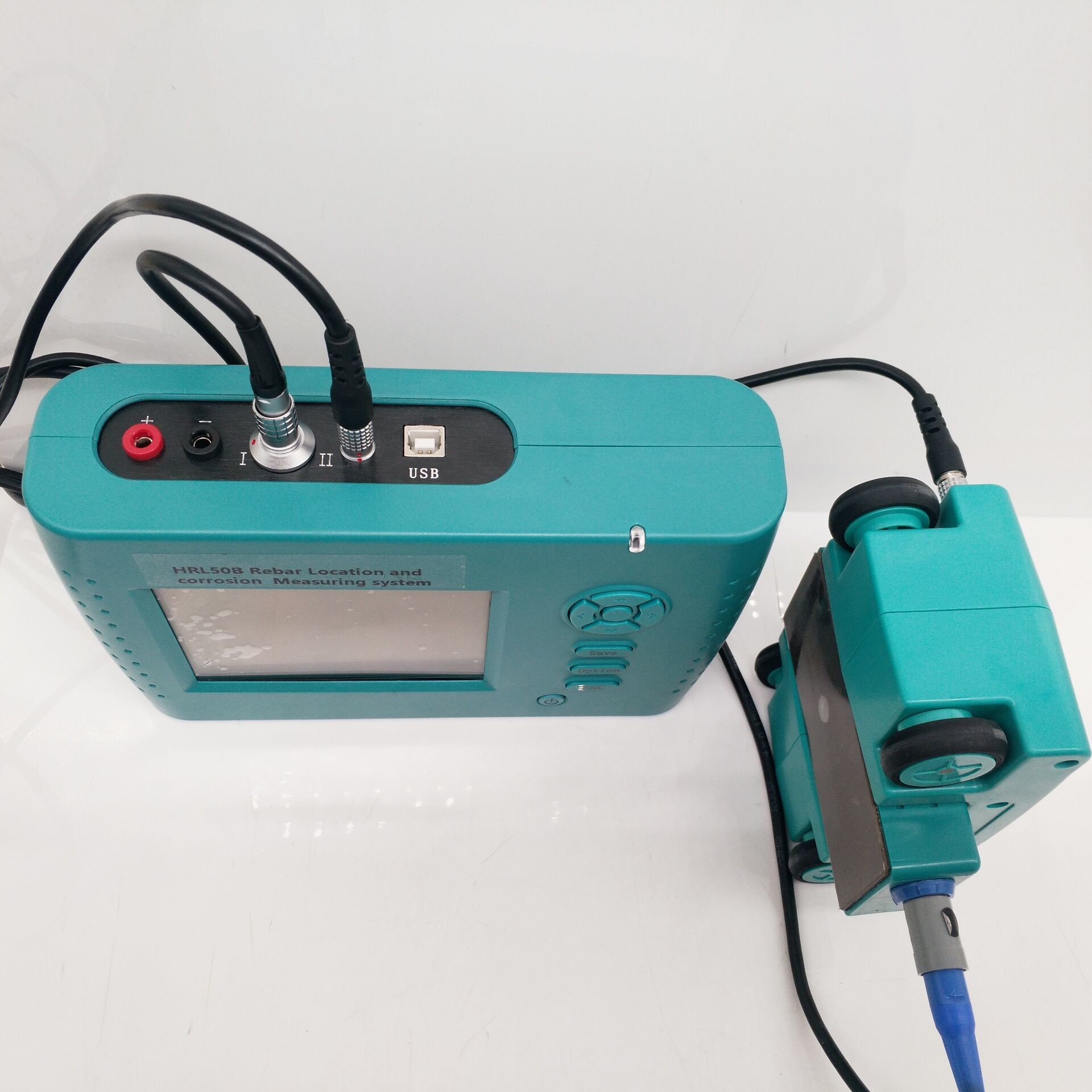

HRL50B Rebar Diameter Corrosion Locator Concrete Thickness Test

Features

Integrate the functions of rebar position test , concrete thickness test, rebar diameter test and rebar corrosion degree test into one product.

Product usage

Testing concrete cover thickness

Test concrete member internal reinforcement position, rebar spacing, reinforcement position distribution.

Estimation bar diameter

Detection of Cable and Plumbing pipe

Detection of steel corrosion extent

Bar diameter application range(mm)		Φ6 – Φ50
maximum value permissible error of Bar diameter		≤±1
Protective layer thickness measuring range
The first measuring range (mm)		6 - 90
The second measuring range (mm)		7-180
The maximum error of reinforced protective layer thickness test value
The first measuring range (mm)	The second measuring range (mm)
6 - 59	7 - 79	≤±1
60 - 69	80 - 119	≤±2
70 -90	120 - 180	≤±4
Work temperature ℃		-10 - +40
relative humidity RH		< 90%

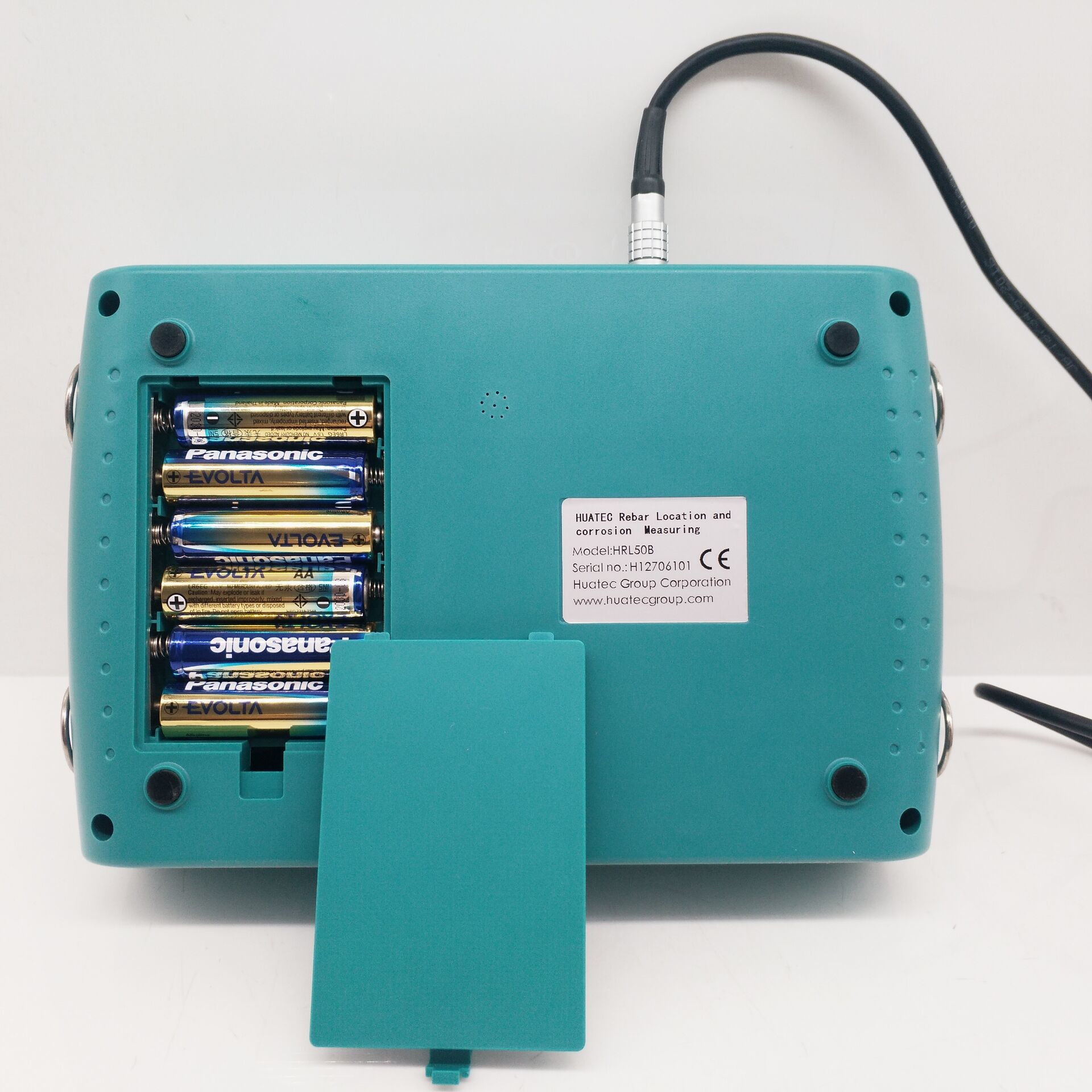

power supply mode		Alkaline cell X 6

Measuring Potential	±2000mV
Test accuracy	± 1mV
Measuring Space	1-99 cm (adjustable)
Ambient Temperature	-10℃～＋40℃
Environment Requirement	to avoid direct exposure to the sun for a long time.
Relative Humidity	<90%RH
Electromagnetic Interference	no strong alternating electromagnetic field

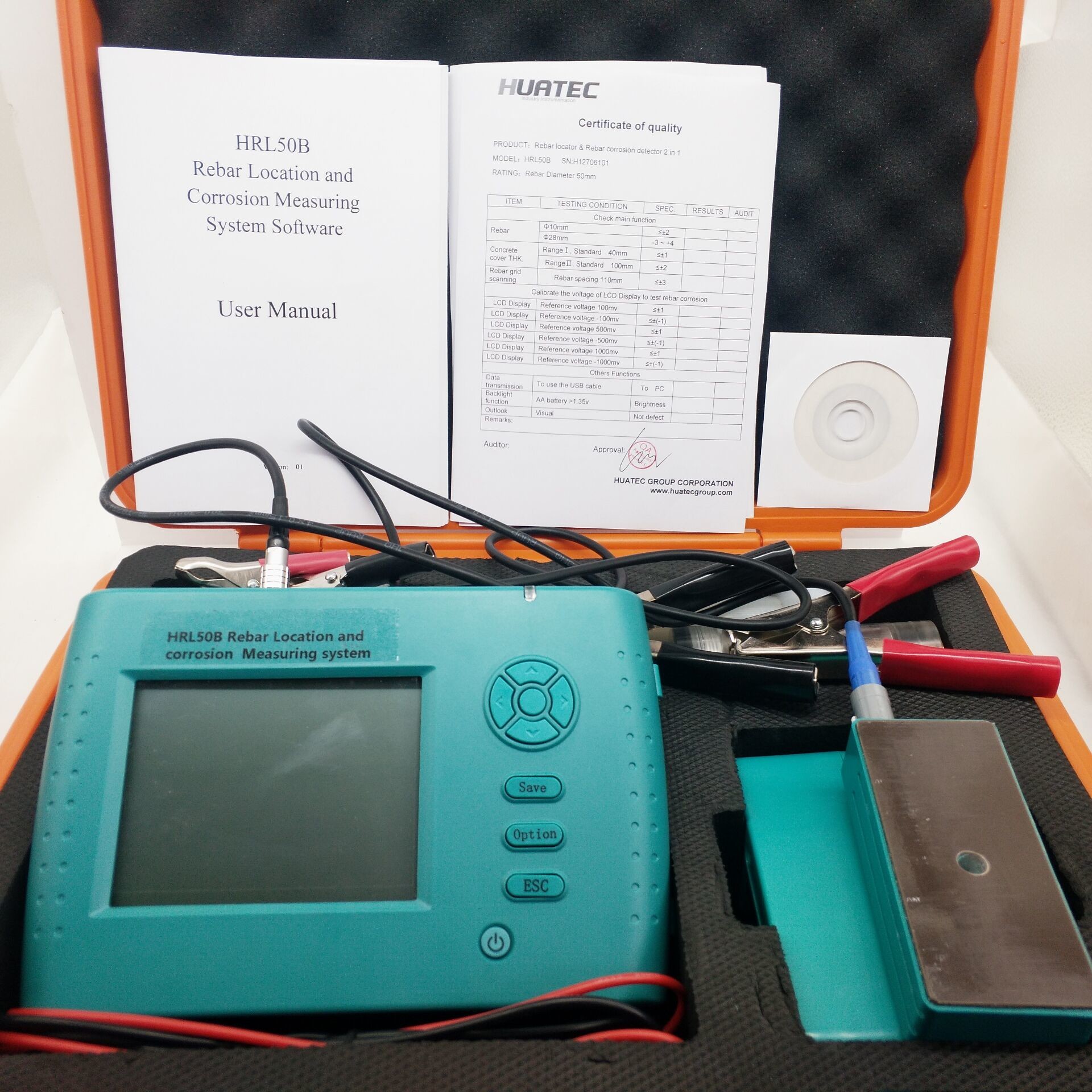

Standard Delivery

Main unit,

Software,

USB connecting

Cable,

Instruction manual,

Test probe

Probe connecting line

Probe cart

HRL50B Ndt Equipment Rebar Diameter Corrosion Locator Concrete Thickness Test
