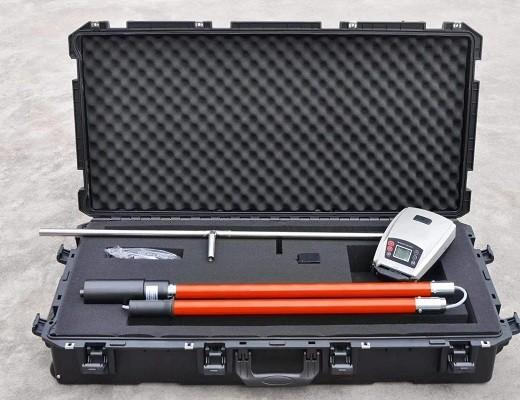

HD-107 0.6kV-50KV Geomembrane Leak Detector for floor waterproofing
Geomembrane leak detection equipment, at the scene of the absorption adopt a generation of user feedback, on the basis of the integration of various conditions around the application experience, further optimization, by testing the large, improve the core component of pressure, make the output voltage of up to 50 kv, according to check the thickness of the geomembrane, conductivity, and soil dry and wet sensitivity can fit match, with better easily detect funnelled position, and continue to alarm prompt.This system equipment still has good portability and operability. After the upgrade, the output is more linear and the detection of leakage point is more efficient. In view of the large battery capacity doubling to 4400AMH, it is more suitable for long-term continuous construction in the field.
The system equipment is suitable for floor waterproofing, pond waterproofing, pit leakage, river dam waterproofing and other construction waterproofing detection. Suitable geomembrane type: HDPE LDPE PVC polypropylene asphalt geomembrane conductive supported geomembrane any other electrical insulation material. Suitable type of geomembrane subgrade: compacted clay with suitable electrical conductivity concrete suitable electrical conductivity GCL conductive aluminum foil of geosynthetics, etc.
| Main technical performance: | HD-107 |
| | 1. Output high voltage: 0.6kV ~ 50KV (stepless continuous adjustable) 2. Detection thickness: 0.1~35mm (affected by the soil environment on site) 3. Direct indication of output high voltage value 4. Variable sensitivity 5. Battery: 12V/2200mA 6. Power consumption: ≤5W 7. Main engine volume: 220 × 130 × 88 mm 8. With background light 9. Instantaneous power on, automatic power off and shutdown 10.3 LIQUID crystal display output voltage, full touch panel 11. Alarm: Peak-ringing alarm |
