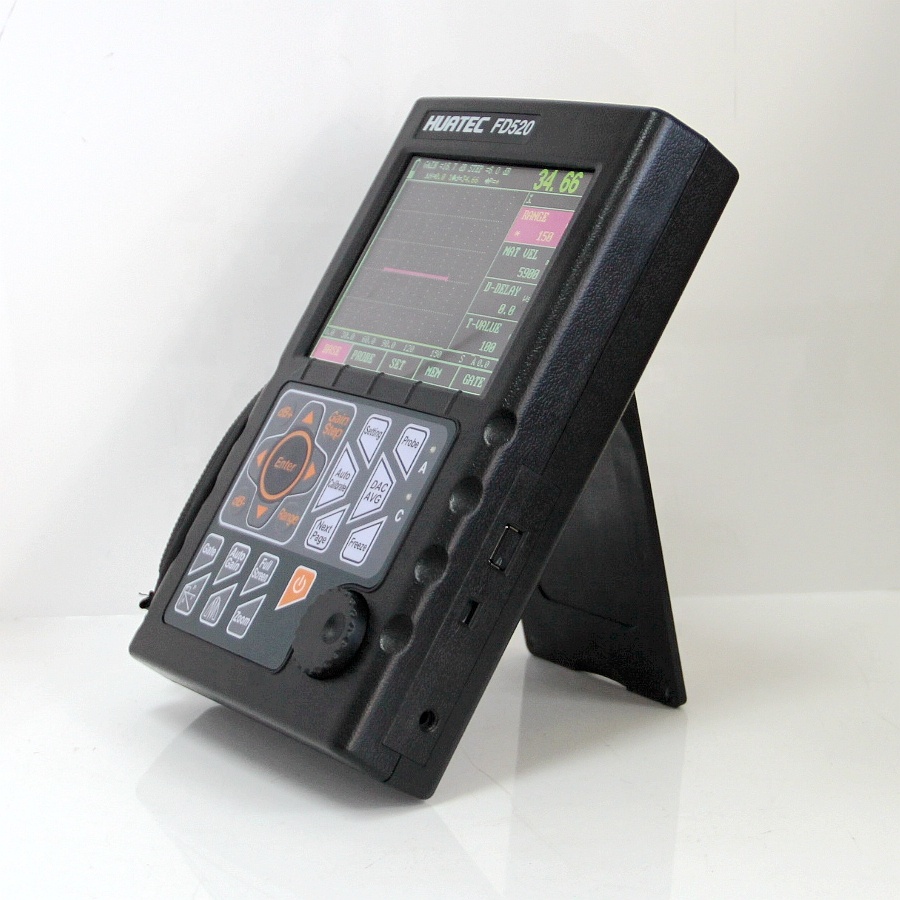

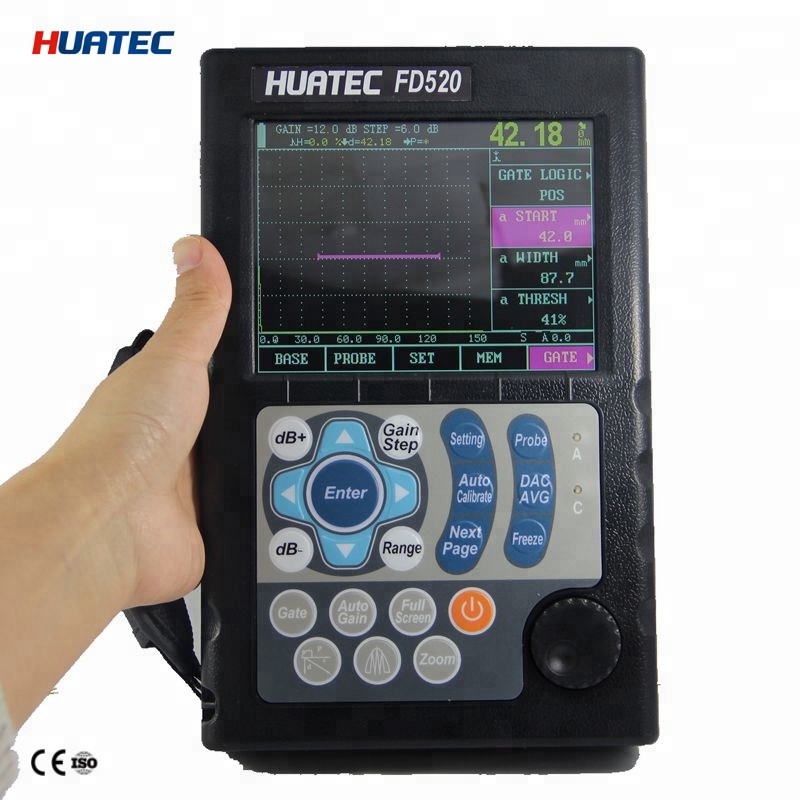

ABS Digital Ultrasonic Flaw Detection Equipment Ndt

Name: ABS Digital Ultrasonic Flaw Detection Equipment Ndt
Brand: HUATEC
Price: 1 USD

Quality ABS Digital Ultrasonic Flaw Detection Equipment Ndt wholesale

Brand Name : HUATEC

Model Number : FD520

Certification : ISO

Place of Origin : CHINA

MOQ : 1pc

Payment Terms : T/T, Western Union/Paypal

Supply Ability : 500pcs per months

Packaging Details : Carton

Material : ABS

Measuring Range : 0 ~ 10000

Frequency Range : 0.5 ~ 15

Gain(dB) : 0 ~ 120

Contact Now

Digital ultrasonic flaw detector NDT flaw detector

Automated calibration,Automated gain

DAC,AVG,TCG,B scan,AWS

High-speed capture and very low noise

Title	Parameter	Title	Parameter
Measuring Range(mm)	0 ～ 10000	Measurement Mode	Single,Dual,Thru
Vertical Linearity Error	≤3%	Reject	0~80%
Horizontal Linearity Error	≤0.1%	Pulse Displacement(μs)	-20 ～ +3400
Sensitivity Leavings	≥62dB	Zero(μs)	0.0 ～ 99.99
Dynamic range	≥32dB	Port Type	BNC(Q9)
Resolving Power	≥36dB	Operating Temperature (℃)	-20～50
Frequency Range(MHz)	0.5 ～ 15	H×W×D(mm)	240×156×48
Gain(dB)	0 ～ 110	Weight(kg)	1.0(with battery)
Material Velocity(m/s)	1000 ～ 15000

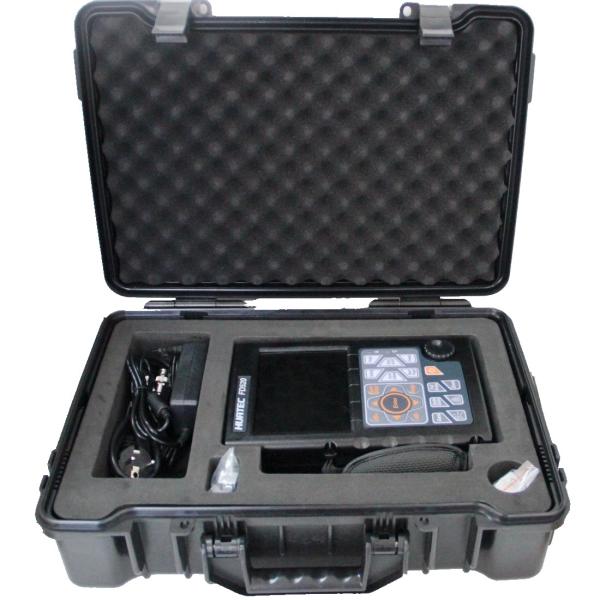

Standard Delivery:

Main unit 1pc

2.5MHZ-ф20 straight probe 1pc

4MHZ-8x9mm 1pc

60degree angle probe 1pc

4A/9Vpower adapter 1pc

Probe connection cable (BNC to BNC) 1pc

Probe connection cable (BNC to Lemo 00) 1pc

Instruction manual 1pc

Carrying case 1pc

RS232-USB converter 1pc

ABS Digital Ultrasonic Flaw Detection Equipment Ndt

Product Tags:

ultrasonic flaw detection equipment

ndt ultrasonic flaw detection equipment

abs digital ultrasonic flaw detector

ABS Digital Ultrasonic Flaw Detection Equipment Ndt Images
