High Quality Wet Sponge Coating Pinhole Porosity Holiday Detector

Name: High Quality Wet Sponge Coating Pinhole Porosity Holiday Detector
Brand: HUATEC
Price: 1 USD

Quality High Quality Wet Sponge Coating Pinhole Porosity Holiday Detector wholesale

Brand Name : HUATEC

Model Number : HD-104

Place of Origin : China

MOQ : 1PC

Payment Terms : T/T, Western Union, Paypal

Material : ABS

Detector range : 9V ——300µm; 67.5V—500µm;67.5V—500µm

Accuracy of voltage : +5%

Battery : Li-pol rechargeble battery 11.1V/1100mA

Contact Now

High Quality Wet Sponge Coating Pinhole Porosity Holiday Detector

HD104 wet sponge pinhole leak detector meets the following standards: ASTM 3894.2, ASTM D-5162 A, ASTM G6, ASTM G62-A, BS 7793-2, ISO 8289, ISO 8289 A, ISO 14654, NACE RP 0188.

Main technical performance

Three voltages are available	9V/ 67.5V /90V
Alarm	visible signal and audio alarm
Applicable test thickness	9V -- 300 microns 67.5 V - 500 microns 90 V - 500 microns
Sensitivity	9 V - 90 k Ω + 5% 67.5 V - 125 k Ω + 5% 90 V - 400 k Ω + 5%
Voltage accuracy	5%
Battery	lithium polymer battery (Li-pol) 11.1V /1100mA
Power consumption	≤ 0.5W
Size	290×53×53mm
Weight	500g
Voltage indication	three voltages are indicated by corresponding LED lights
Battery charging	specially equipped with 12VDC lithium battery constant voltage charger
sponge size	170×70×30mm
Length of probe rod	195mm
length of ground wire	4m

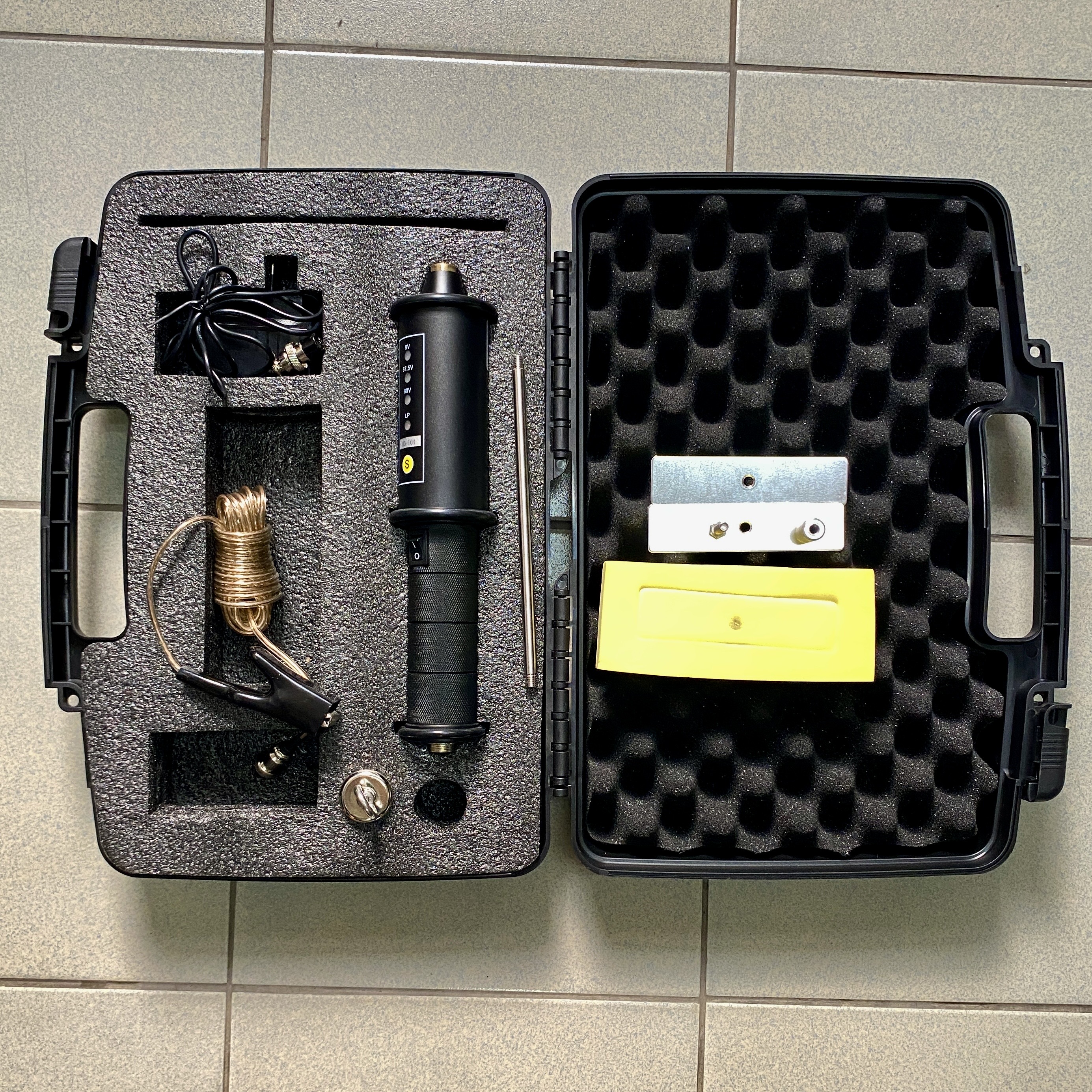

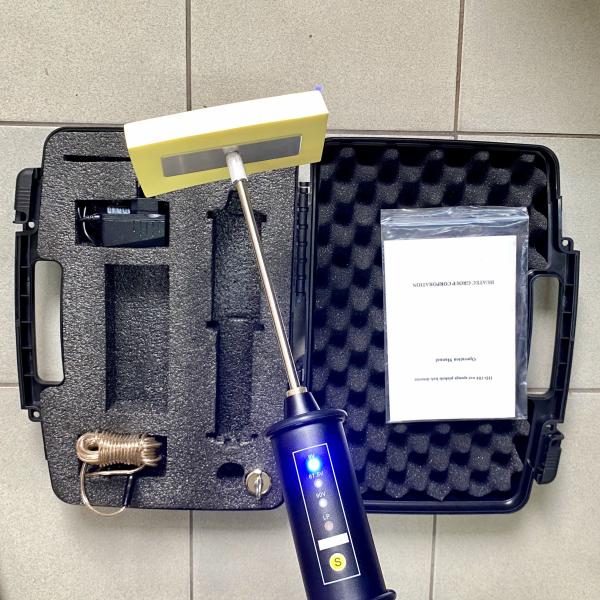

Standard delivery
HD-104 pinhole main unit 1pc
Standard wand and flat sponge 1pc
Earth wire 1pc
Charger 1pc
Carrying case 1pc
Manual 1pc
Warranty card 1pc

High Quality Wet Sponge Coating Pinhole Porosity Holiday Detector
