HUATEC TG-8812L Ultrasonic Thickness Gauge Advanced New Type

Brand Name : HUATEC

Model Number : TG-8812L

Certification : CE ISO

Place of Origin : CHINA

MOQ : 1set

Payment Terms : T/T, Western Union，Paypal

Supply Ability : 5000 Set per month

Delivery Time : 3-5 work days

Packaging Details : carton

Measuring range : 0.55〜500mm

Standard mode : 0.75〜500m Probe：5PΦ10mm

Ultra-thin mode : （0.55〜1）mm

Measurement Resolution : ±（0.5%H+0.05）mm

Display Resolution : 0.01mm

Material Velocity : 509～18699m/s

Bandwidth : 1MHz～10MHz(-3dB)

Screen : TFT Color screen 2.3 inch

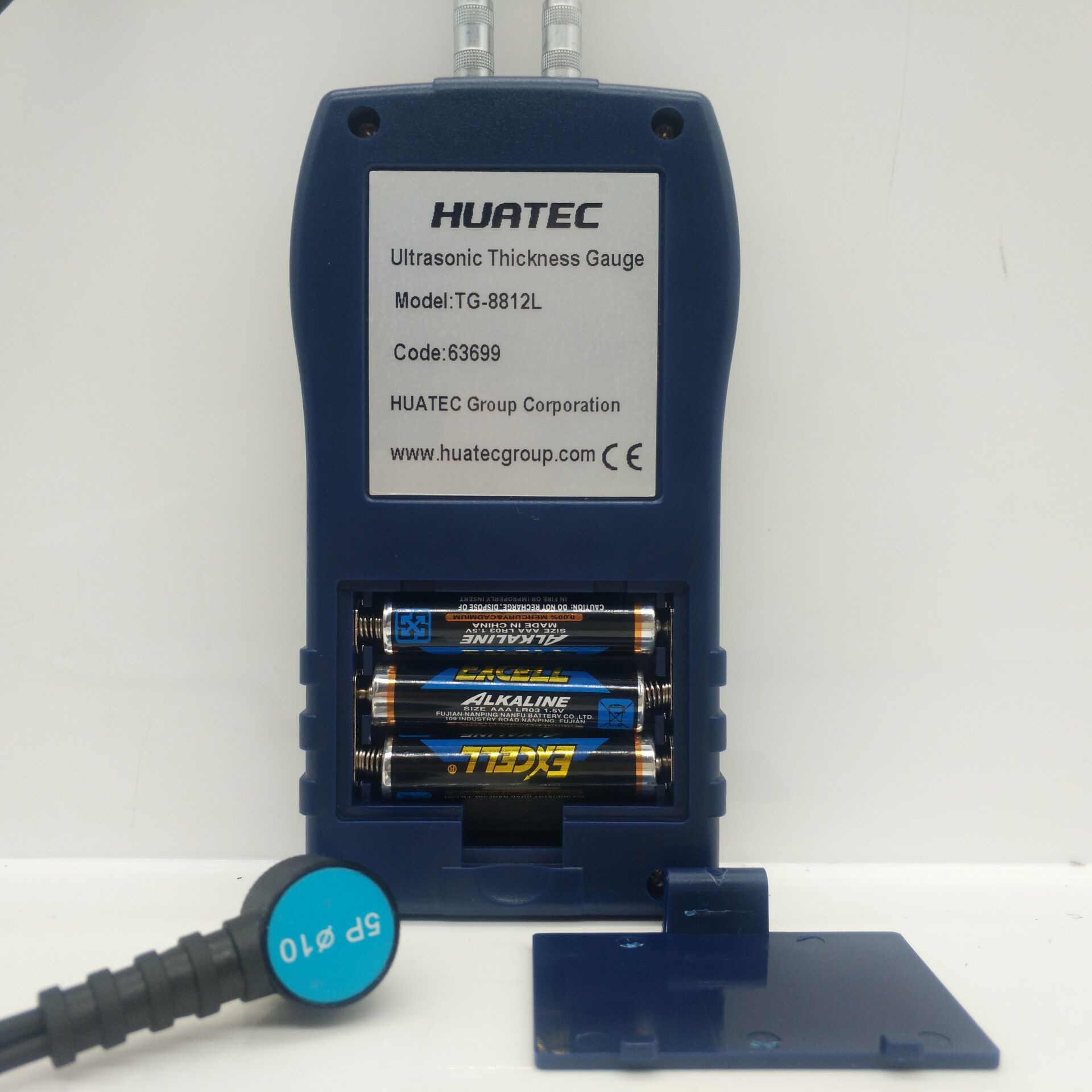

Power supply : 4.5VDC (three AAA batteries)

Contact Now

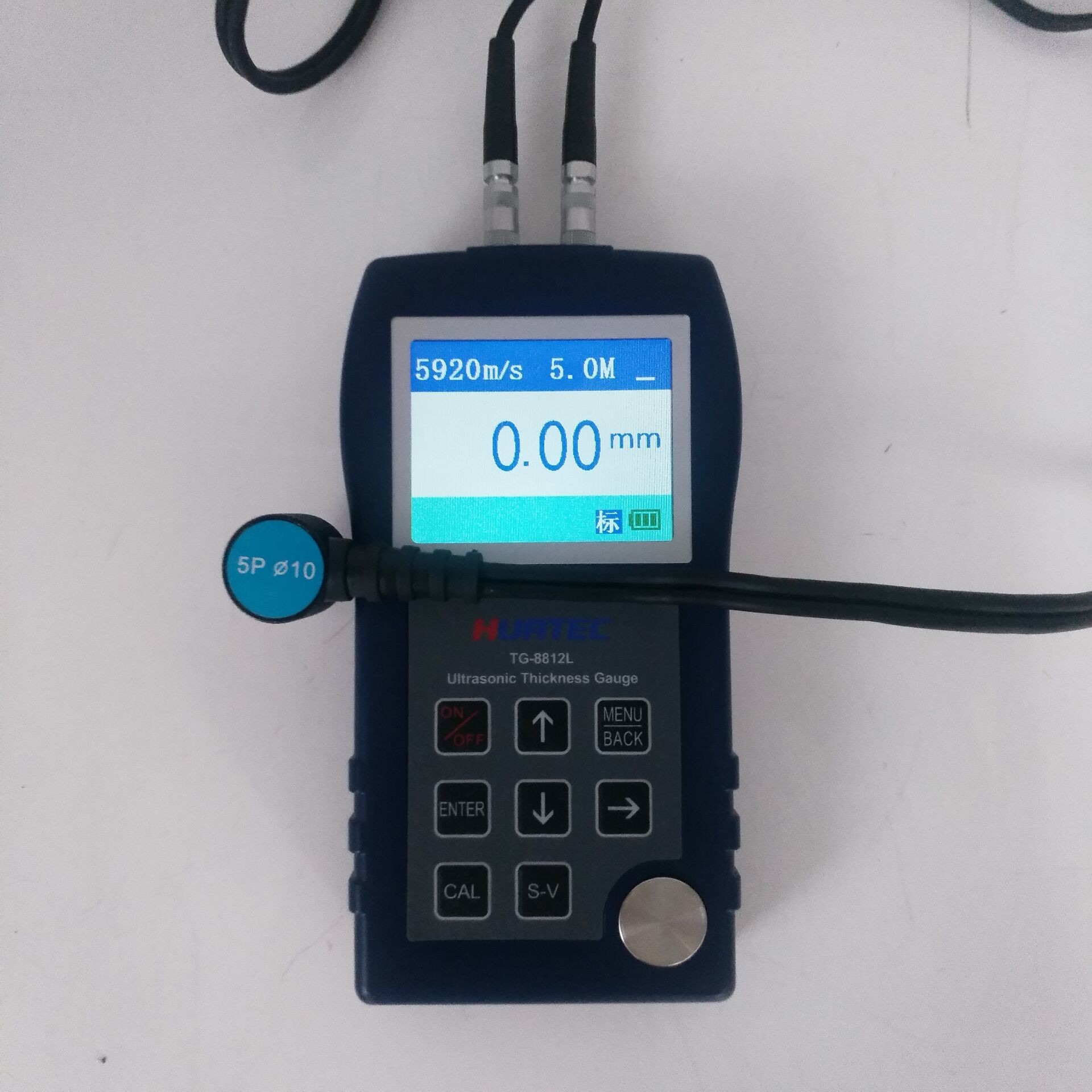

HUATEC TG-8812L advanced new type ultrasonic thickness gauge

HUATEC TG-8812L Ultrasonic Thickness Gauge Advanced New TypeHUATEC TG-8812L Ultrasonic Thickness Gauge Advanced New TypeHUATEC TG-8812L Ultrasonic Thickness Gauge Advanced New TypeHUATEC TG-8812L Ultrasonic Thickness Gauge Advanced New TypeHUATEC TG-8812L Ultrasonic Thickness Gauge Advanced New Type

1. Overview

Ultrasonic thickness gauge is a kind of high-precision thickness gauge which uses ultrasonic measurement principle, adopts high-speed processor and high integrated chip design to realize portable, nondestructive, fast and accurate measurement of thickness and sound velocity of various materials. It is suitable for measuring the thickness of various materials, such as steel, metal, glass, ABS, plastics, PVC, ductile iron, etc., which can be transmitted by ultrasonic wave at a constant speed in its back.

2.Instrument characteristics

  • It is suitable for thickness measurement of various materials: various metals, glass, plastics and other materials;
  • The instrument is exquisite and compact, with 2.3-inch color screen display, which is easy to carry, Suitable for on-site inspection
  • Measurement mode: standard mode / ultra-thin mode (for High-precision large range type)
  • Measurement mode: standard mode / Penetration coating mode (special for penetrating type)
  • High measurement accuracy, wide measurement range, single probe full range
  • English bilingual version
  • Bluetooth interconnection data transmission function (applicable to TG-8812L and TG-8812D thickness gauge)
  • Calibration: standard block calibration, sound velocity calibration, sound velocity can be calculated by known thickness
  • Two kinds of manual shutdown and automatic shutdown, users can choose at will;
  • Built in sound speed of 7 kinds of commonly used materials, which can be edited and convenient for users to use;
  • Humanized data storage mode: mass storage, and can save data in groups, can store 10 groups of data, each group can save 200 data, and can store 2000 data
  • Large capacity storage, view, delete operation, convenient and simple
  • Multi probe selection use, high temperature environment measurement can be equipped with high temperature probe, high temperature resistance (300 ℃)

3. Technical index

MODEL TG-8812N TG-8812C TG-8812L TG-8812D

Measuring Range

(Standard)

 0.9〜300mm 0.75〜400mm 0.55〜500mm 0.75〜500mm
Standard mode

0.9〜300mm

Probe:5PΦ10mm

0.75〜400mm

Probe:5PΦ10mm

0.75〜500m

Probe:5PΦ10mm

0.75〜500m

Probe:5PΦ10mm
Ultra-thin mode ／ ／ (0.55〜1)mm ／
Penetration mode (Echo-Echo) ／ ／ ／ 2.5-25mm(steel)
Microcrystal probe 1〜50mm
Probe:7.5PΦ6mm

0.75〜100mm

Probe:7.5PΦ6mm

0.75〜100mm

Probe:7.5PΦ6mm

0.75〜100mm

Probe:7.5PΦ6mm
High temperature probe

2〜100mm

(Probe:ZW5P)

1.5〜100mm

(Probe :ZW5P)

1.5〜200mm

(Probe:ZW5P)

1.5〜200mm

(Probe:ZW5P)
Display Resolution 0.1mm 0.01mm 0.01mm 0.01mm
Measurement Resolution ±(1%H+0.1)mm ±(1%H+0.1)mm ±(0.5%H+0.05)mm ±(0.5%H+0.05)mm
Material Velocity 1000～9999m/s 509～18699m/s 1000～9999m/s
Bandwidth 1MHz～10MHz(-3dB)
Power Supply 4.5VDC (three AAA batteries)
Screen TFT Color screen 2.3 inch
Size 130(L)×70(W)×25(H)mm
Weight 125g (excluding batteries)
Work Temperature -10～﹢50℃(with high temperature probe, up to 300℃)
Work Humidity 20%～90%RH

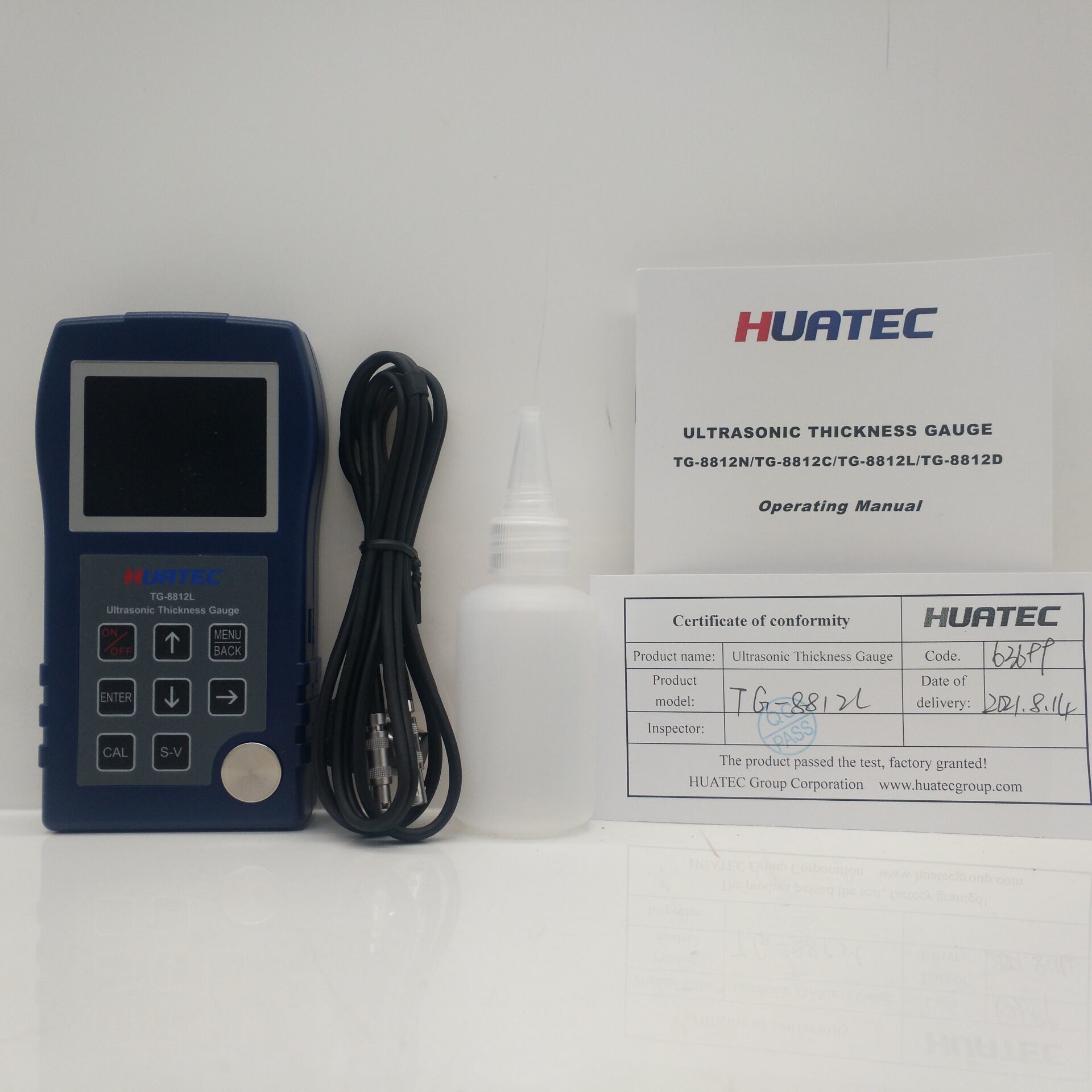

4. Standard accessories

NO Item name Quantity
1 Thickness gauge One
2 Standard probe (5P, φ 10) One
3 Coupling agent (50ml) One
4 Battery Three AAA batteries
5 Manual One
6 Qualification certificate One

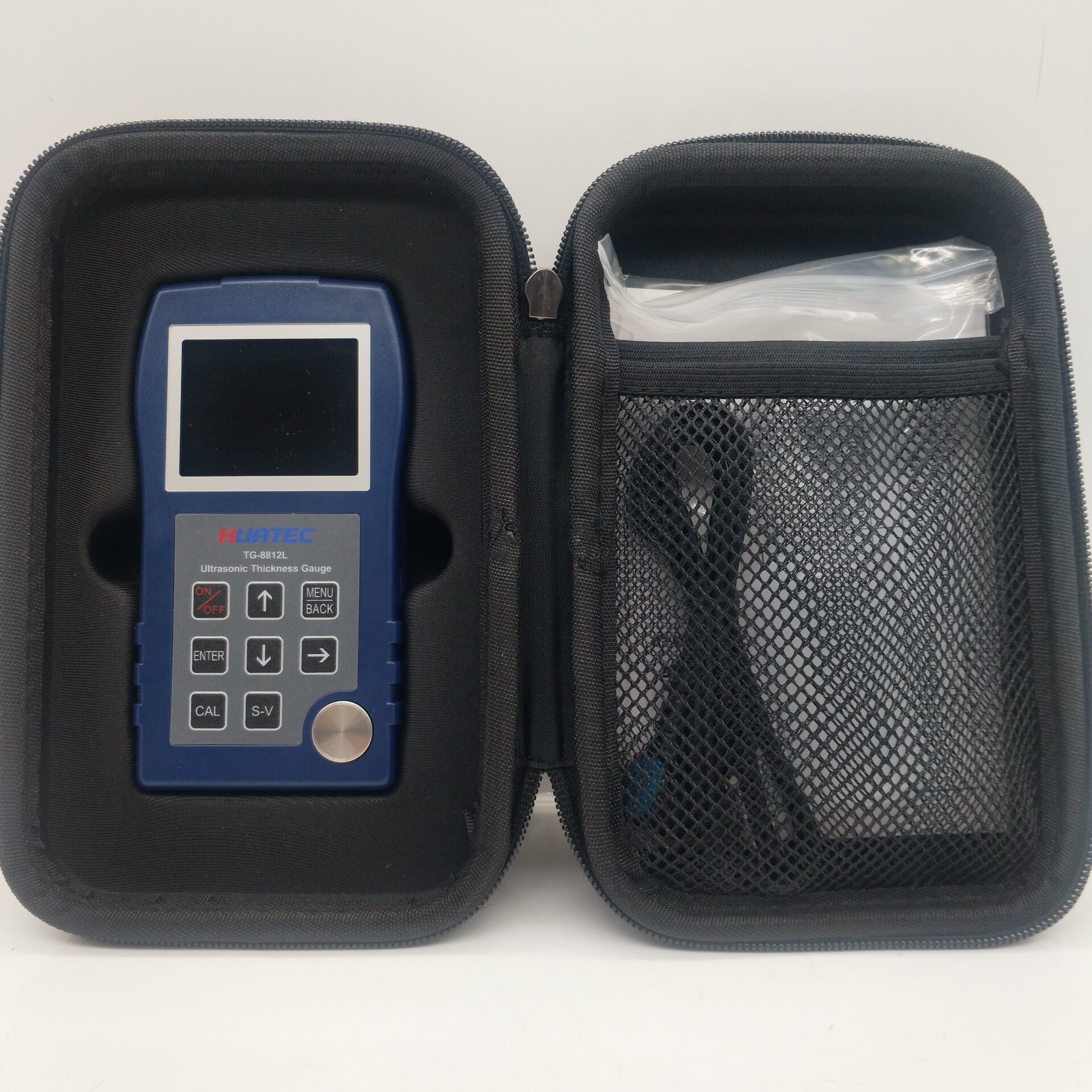

7 Instrument package One

Sound Velocities of Various Materials Longitudinal Wave Velocity

Material Velocity(m/s) Material Velocity(m/s)
water(20℃) 1480 Stainless steel (304) 5663
glycerin 1920 Brass, yellow 4640
Water-glass 2350 Copper 4700
Nylon 2620 Glass 5440
Acetic acid resin 2670 Nickel 5630

Acrylic acid

resin

 2730 Steel 330 5600
Tin 3230 Steel 4330 5850
Gold 3240 Iron ,steel 5920
phosphor bronze 3530 Titanium 6070
Silver 3600 Magnesium 6310
Zinc 4170 Aluminum 6320
