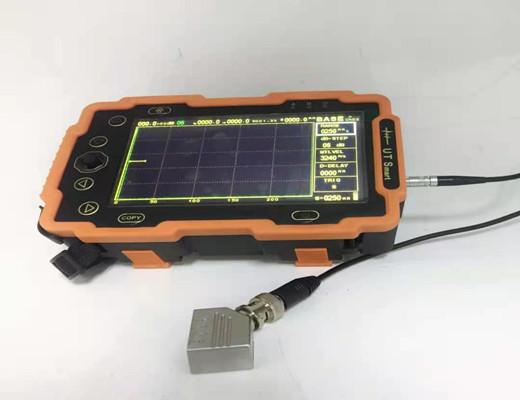

Large Screen Li Battery USMGO Ultrasonic Flaw Detector UT

  • 1
  • 2
  • 3

Brand Name : HUATEC

Model Number : FD530mini

Certification : ISO，CE，Gost

Place of Origin : China

MOQ : 1 set

Payment Terms : T/T, Western Union

Supply Ability : 100 sets per month

Delivery Time : 3-7 days

Packaging Details : in High quality carton

Product name : Ultrasonic Flaw Detector

Range of scanning (mm) : 0～1000

Frequency Range (MHz) : 0.5~10

Data save : 500 A-Scan images

Contact Now

Large Screen Li battery USMGO Ultrasonic Flaw Detector (UT)

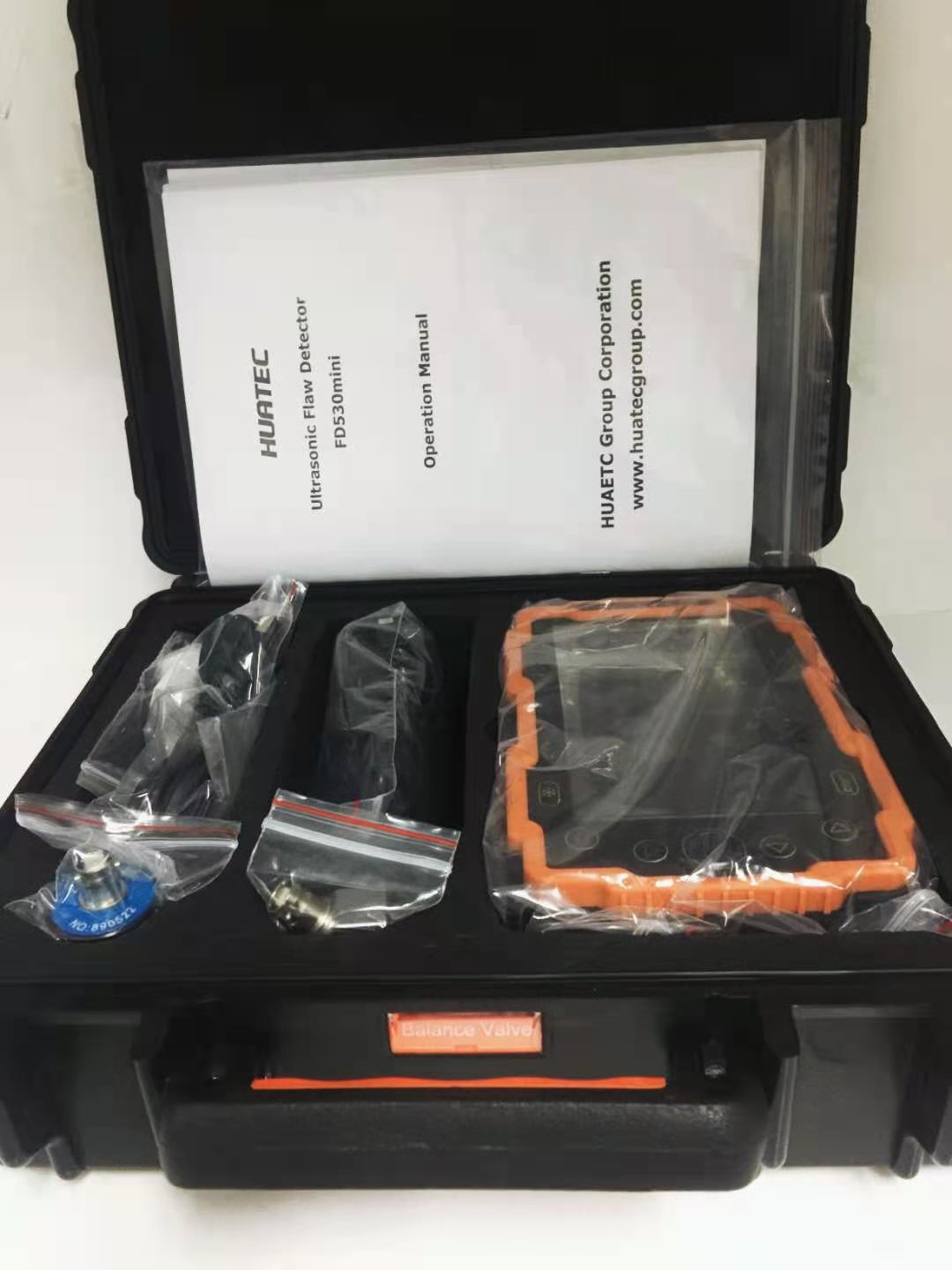

Standard Configuration

Designation

Quantity
Main unit 1
4.2V power adaptor 1
probe connecting cable 1
Carrying case 1
Instruction manual 1
Straight probe 1 (Dia 20mm, 2.5MHz)
Angle probe 1 (13×13, 60°, 2.5MHz)

Options

Designation

Quantity
Communication software for PC 1 set
Other probes Straight/ Angle/ Dual types for option

Technical Parameters and Performance Features of the Instrument

Measuring Range and Specification

Range of scanning: 0 mm ~1000 mm

Resolution for scanning: 1mm

Range of gain: 0dB ~110 dB

D-Delay: 0µs～5000µs

Sound speed : 1000 m/s～9999m/s

Operation Environment

Temperature: -20℃~50℃

Humidity: 20%～90%RH

Free of strong magnetic field and corrosion

Power supply
Li battery 7.4V 4800mAh
Overall Dimension and Weight
Overall dimension: 162mm×105mm×40mm
Weight: 0.68kg

Performance Features

  • The dual CPUs work in coordination, high speed detecting and data processing；
  • Automatic calibration；
  • Easy tests of thickness and sound velocity of materials;
  • Freely set standards for various industries to meet different flaw detection
  • Automated display precise flaw location(Depth d,level p,distance s,amplitude,dB,diameter ф)；
  • Freely set standards for various industries to meet different flaw detection；
  • The echo suppression is adjustable from 0 to 90%, without affecting the dB gain and linearity；
  • DAG and AVG(DGS) curves are generated automatically;
  • Muti-functions for easy detection: peak memory, Display freeze, automatic gain & wave search；
  • Li -battery, continue working time up to 10 hours;
  • Storage: 500 sets of flaw detection process and data storage;
  • Provides high contrast viewing of the waveform from bright, direct sunlight to complete darkness and easy to read from all angles;
  • USB connects to computer,automatically generate flaw detection report;

Technical Parameters

Item Technical Data
Range of scanning (mm) Range of scanning (mm):0～1000
D-delay (ms) D-delay (ms):0～5000
MTLVEL(m/s) MTLVEL:1000～9999
Working mode Single probe (receiving and sending), double probe (one for receiving and another for sending), transmission (transmission probe)
Frequency Range (MHz) 0.5~10
Gain adjustment (dB) 0～110
Reject 0%～80% of screen height
Vertical linear error Vertical linear error is not more than 3%
Horizontal linear error Not more than 0.1% in the scanning range
Sensitivity Leavings ≥50 dB
Dynamic range ≥36dB
Alarm Three modes, i.e. forbidden wave, loss wave and auto
A-Scan display area

Full screen or local

A-Scan display freezing and de-freezing A-Scan filling
Data save 500 A-Scan images (including setting of instrument)
Standard communication interface with PC USB
Measuring unit mm/inch
Battery Li battery 3.6V 3000mAh * 4
Power adaptor 4.2V DC 220AC
Working temperature -20℃～50℃
Working humidity 20%～90%
Port type LEMO
Overall dimension (mm) 162×105×42
Weight (kg) 0.68 (include Li-ion battery)

Large Screen Li Battery USMGO Ultrasonic Flaw Detector UT

Large Screen Li Battery USMGO Ultrasonic Flaw Detector UT
