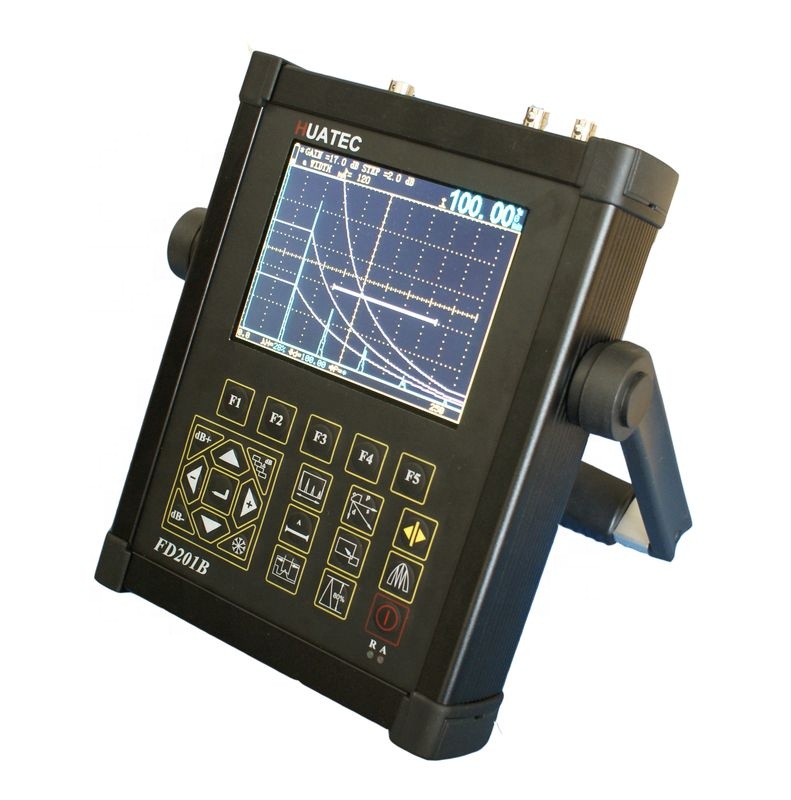

DAC AVG Curves Digital Ultrasonic Flaw Detector Measuring Range 2.5～5000MM
Features for digital ultrasonic flaw detector FD201B:
DAC, AVG curves
AWS function
High-speed capture and very low noise
Gate and DAC alarm;Acoustic-Optical alarm
Solid metal housing (IP65)
High contrast viewing of the waveform from bright
Powerful pc software and reports can be export to excel
1.Automated display precise flaw location (Depth d, level p, distance s, amplitude, sz dB, ф)
2. Automated switch three staff gauge ((Depth d, level p, distance s)
3. Convenient to make and use DAC and AVG to evaluate the echo, the curve can be modified and compensated
4. Ten independence setup, any criterion can be input freely, we can work in the scene without test block
5. Big memory of 300 A graph and 30000 thickness value
6. Automated gain and gain scan, automated echo degree
7. Peak hold and Peak memory
8. Powerful PC software and reports can be export to excel
9. RS232/USB
10.The embeded software can be online updated
11.Li battery, continue working time up to 10 hours
12.Display freeze
13.Lock and unlock function of system parameters
14.Dormancy and screen savers
15.Electronic clock calendar
16.Two gates setting and alarm indication
Specifications
| Title | Parameter | Title | Parameter |
| Measuring Range(mm) | 0 ～ 5000 | Measurement Mode | Single,Dual,Thru |
| Vertical Linearity Error | ≤3% | Reject | 0~80% |
| Horizontal Linearity Error | ≤0.2% | Pulse Displacement(μs) | -20 ～ +3400 |
| Sensitivity Leavings | ＞60dB | Zero(μs) | 0.0 ～ 99.99 |
| Dynamic range | ＞32dB | Port Type | BNC Q9 |
| Resolving Power | ≥40 | Operating Temperature (℃) | -20～50 |
| Frequency Range(MHz) | 0.5 ～ 15 | H×W×D(mm) | 240×180×50 |
| Gain(dB) | 0 ～ 110 | Weight(kg) | 1.8 |
| Material Velocity(m/s) | 1000 ～ 9999 | | |
