Electromagnetic Ultrasonic Thickness Gauge TG-14

Name: Electromagnetic Ultrasonic Thickness Gauge TG14
Brand: HUATEC
Price: 1 USD

Brand Name : HUATEC

Model Number : TG-14

Place of Origin : China

MOQ : 1

Packaging Details : In carton

Payment Terms : Western Union, T/T

Measurement range : 1.5-240.0mm

Receiving gain : ≤ 100dB

Working temperature : - 150 ℃~+800 ℃

Maximum lifting distance : 4mm

Contact Now

Electromagnetic ultrasonic thickness gauge TG-14

Electromagnetic ultrasonic thickness gauge is an ultra small, non-contact thickness measuring instrument without acoustic coupling agent. It can measure the thickness of metal or magnetic conductive materials.

Measurement range	1.5-240.0mm,the maximum value of the measurement range is affected by the properties of the measured material, sound attenuation coefficient, surface conditions and other factors
Error range of measuring equipment	hen the thickness of workpiece is less than 10mm, the error is 0.05mm; when the thickness is more than 10mm, the error is + (0.01 + H / 200) mm (H is the thickness of workpiece)
Receiving gain	≤ 100dB
Working temperature range of high temperature probe	low carbon steel (or other ferromagnetic steel): - 150 ℃~+800 ℃; Austenitic stainless steel (or other non ferromagnetic materials): - 150 ℃~+150 ℃
Normal temperature probe	≤ 80 ℃, 4MHz, mainly used to detect fine-grained materials, such as low carbon steel, aluminum, etc.,
High temperature probe	≤ 800 ℃, 4MHz, mainly used to measure ferromagnetic fine-grained materials, such as low carbon steel
Maximum lifting distance	4mm (the actual lifting distance is related to the material property and temperature). Anti rust film, salt deposit or any other insulating coating (paint, varnish, enamel, plastic, etc.) can be used as the operating gap
Sonic sound speed adjustment range	1000-9999 m/s
Power supply	built in lithium battery, working time not less than 5 hours

Small size and easy to carry
The requirements for the workpiece surface are not high, and there is no need to polish the rough surface, which can realize non-contact measurement
It is insensitive to the coating and can realize the thickness measurement of coated workpieces or corroded metal pipe.
Without acoustic coupling agent, it can realize the thickness measurement of high-temperature workpiece and perform temperature compensation

Electromagnetic Ultrasonic Thickness Gauge TG-14

Product Tags:

Electromagnetic ultrasonic thickness gauge

4mm ultrasonic thickness gauge

Electromagnetic ultrasonic thickness tester

Quality Electromagnetic Ultrasonic Thickness Gauge TG-14 wholesale

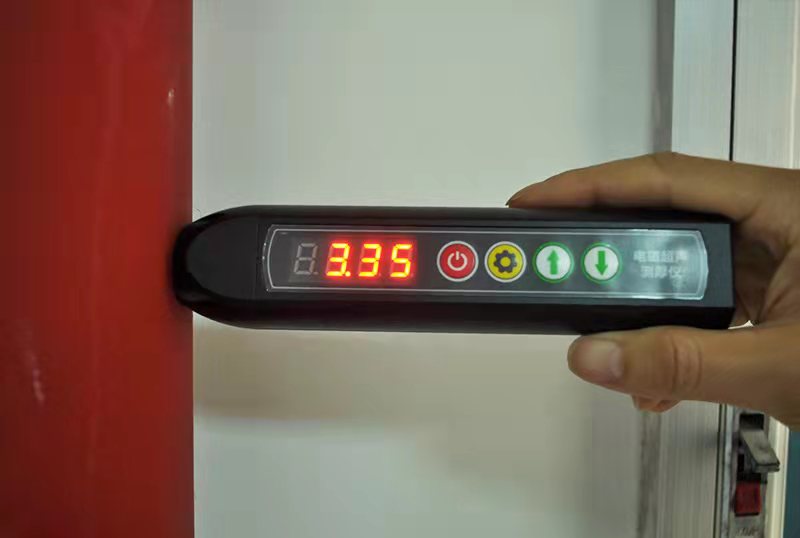

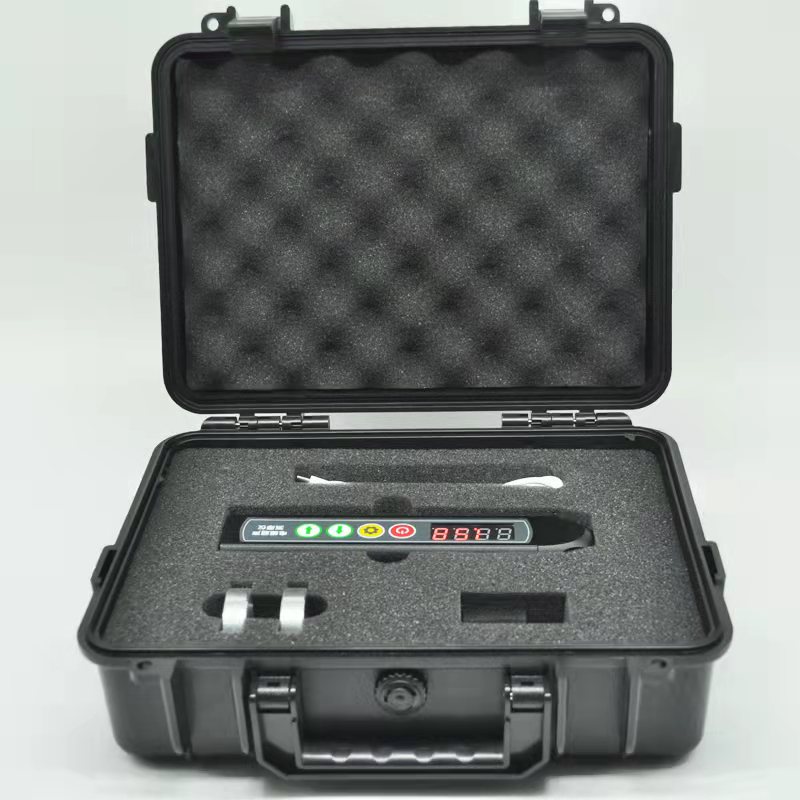

Electromagnetic Ultrasonic Thickness Gauge TG-14 Images
