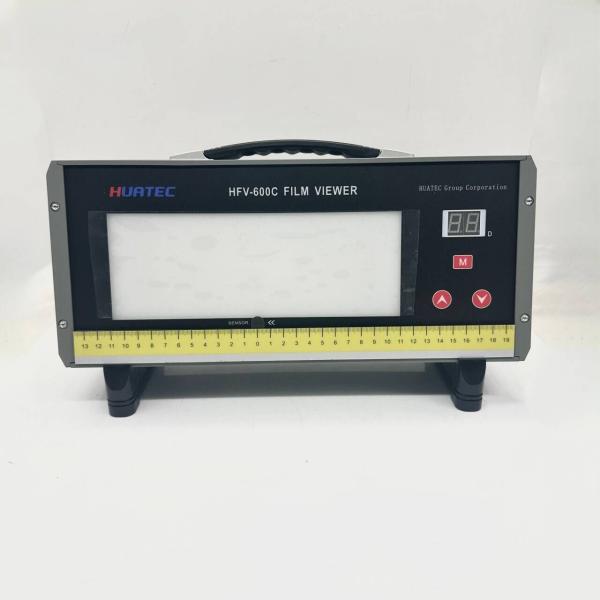

HFV-600C LED Industrial Film Viewer
The led industrial ray film viewer is our company develop new product base on JB-T4730-2005and GB/T 19802-2005. The product combines advantages of both domestic and foreign film viewers, adopt advanced digital electronic technology and super LED lightness source. Overcome traditional film viewer some shortcoming, such as low luminance, poor contrast , poor uniformity, fast attenuation,short lifetime .this product appearance is artistic, operation is humanized. It could be your best assistant
Main Technical Specification
| Luminance | 300000cd/m2(800000Lux) |
| Display range of black and white density value | 1.0-5.0 |
| Observable film blackness | <5.0 |
| Average color temperature | 6500K |
| Maximum viewing screen area | 220x80(mm) |
| Observation surface uniformity | above 0.9 |
| Power | AC: 50-60Hz/100-230VAC DC: 24V Power consumption 120W |
| Magnifying glass | double magnifying glass |
| Ambient temperature used | -20°C-40°C |
| Dimensions | 360x195x95 (mm) |
Feature:
1.appearance is concise. Portable, suit for motive operate
2.Light source: advanced LED lighting of face shape. High brightness value, low light failure,low power dissipation, color temperature close to natural light..
3.Automatic adjust by infrared inductor, omit pedal button.
4.PWM-M of original control system could display the use data at any time and overall protect and remember the record. (mark the working mode and working brightness)
5.Light source: external 24V power adapter, and use battery.more stabilization.
6.Unique cooling system, low temperature. more durable.
7.Advanced visor of automatic positioning.
8.All digital control, simple operation
9.Assemble advanced Retractable handle, more portable.
10.Display: high quality acrylic board. high light transmission, durability and nondeformable fastcolours

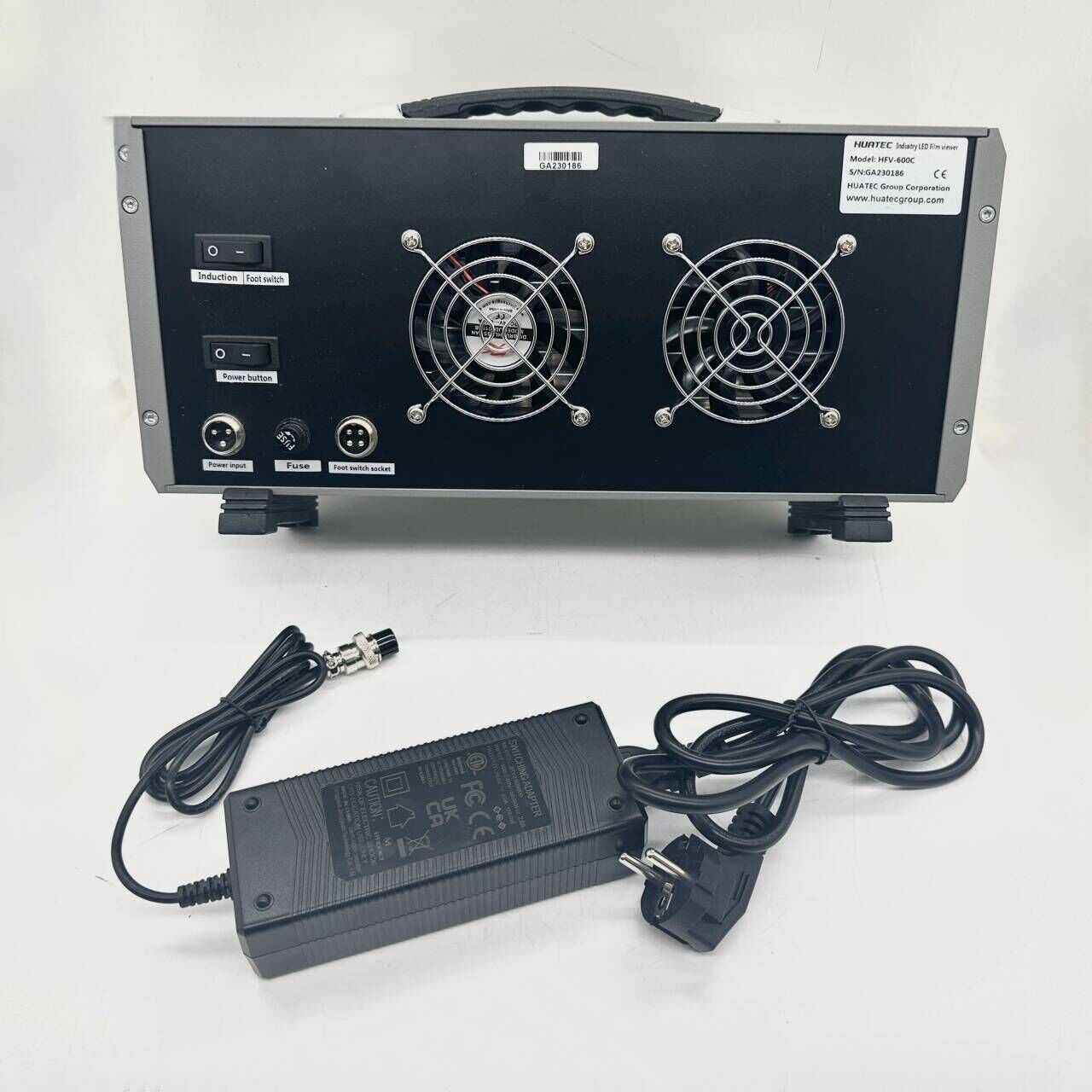

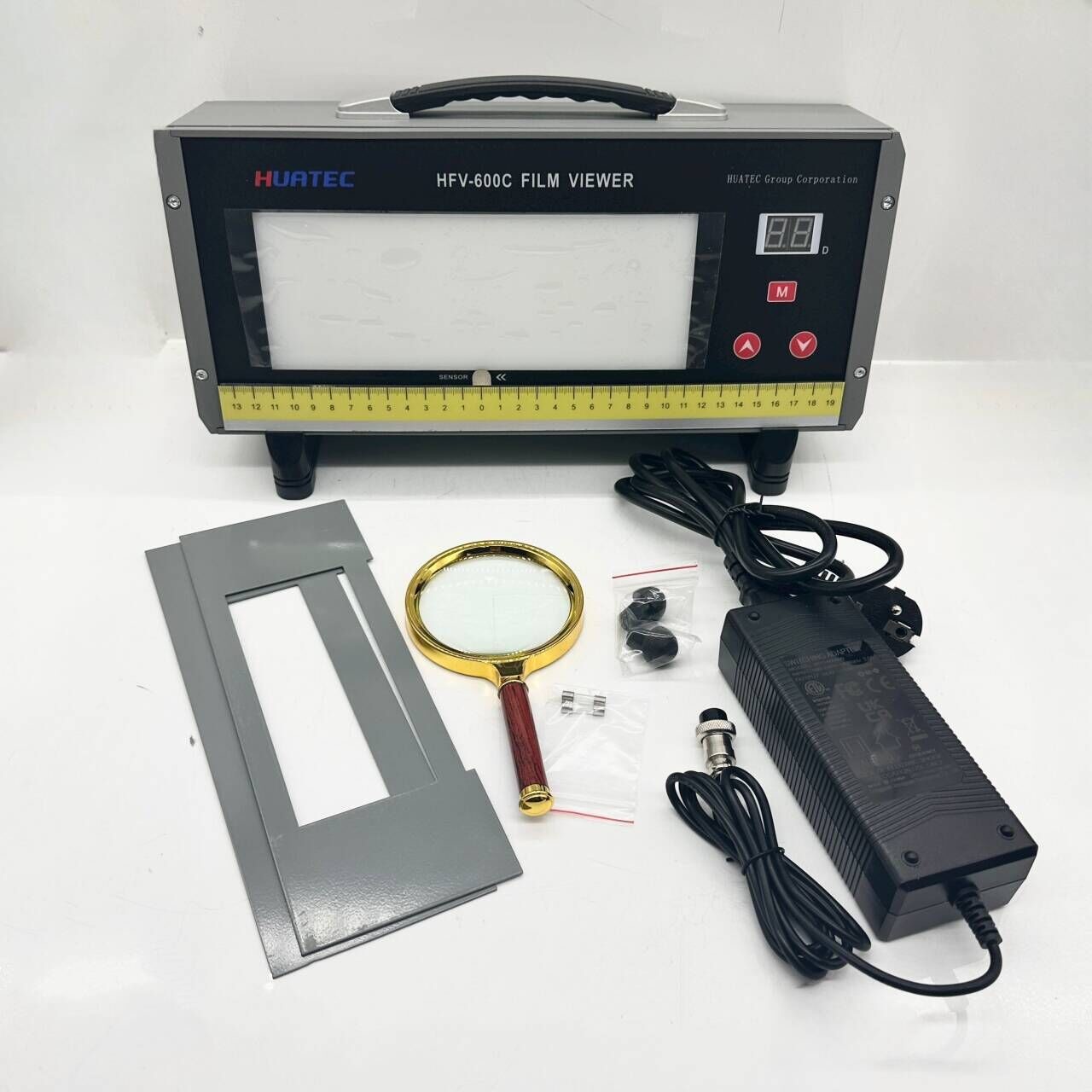

Standard delivery
- Main Unit 1Pc
- DC adapter 1Pc
- Power cable 1Pc
- shading plates 2Pcs
- Straight handle magnifying glass 1Pc
- Spare fuses (5A) 2Pcs
- Foot switch 1Pc
- Manual 1Pc
- Calibration certificate 1Pc
