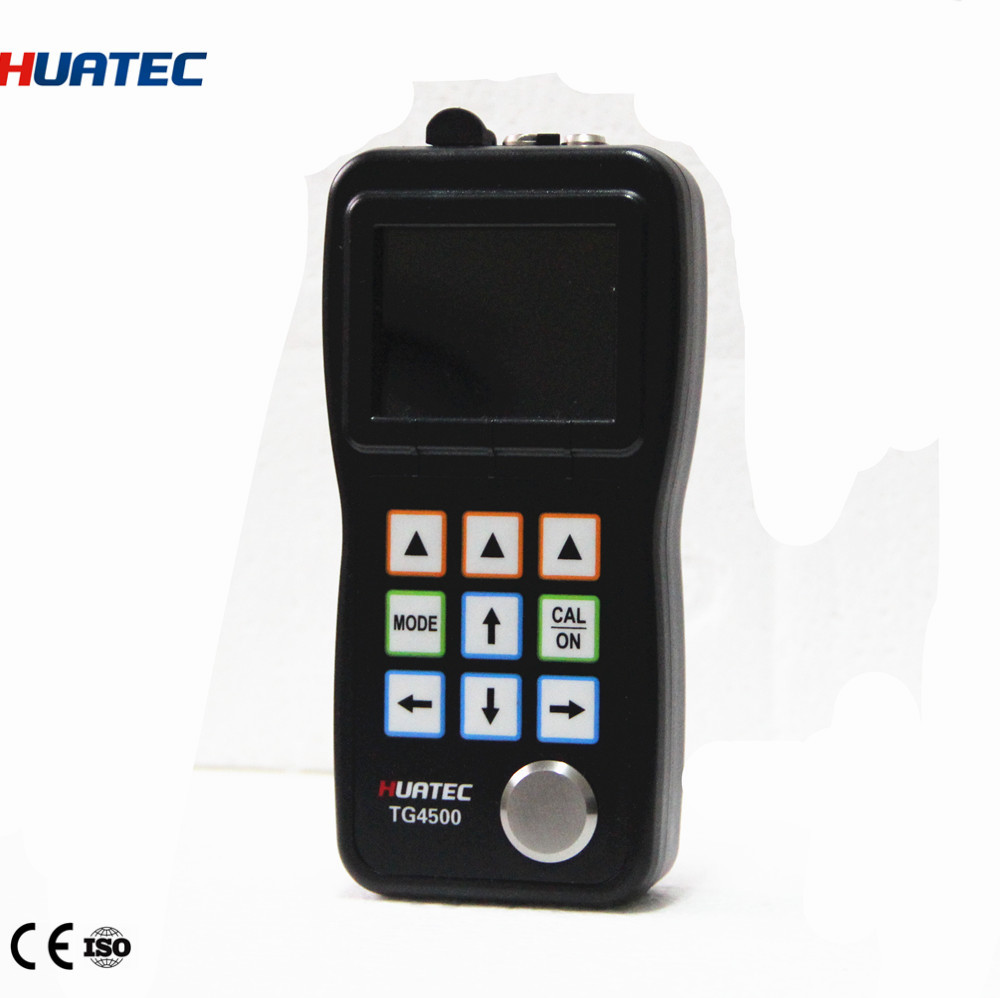

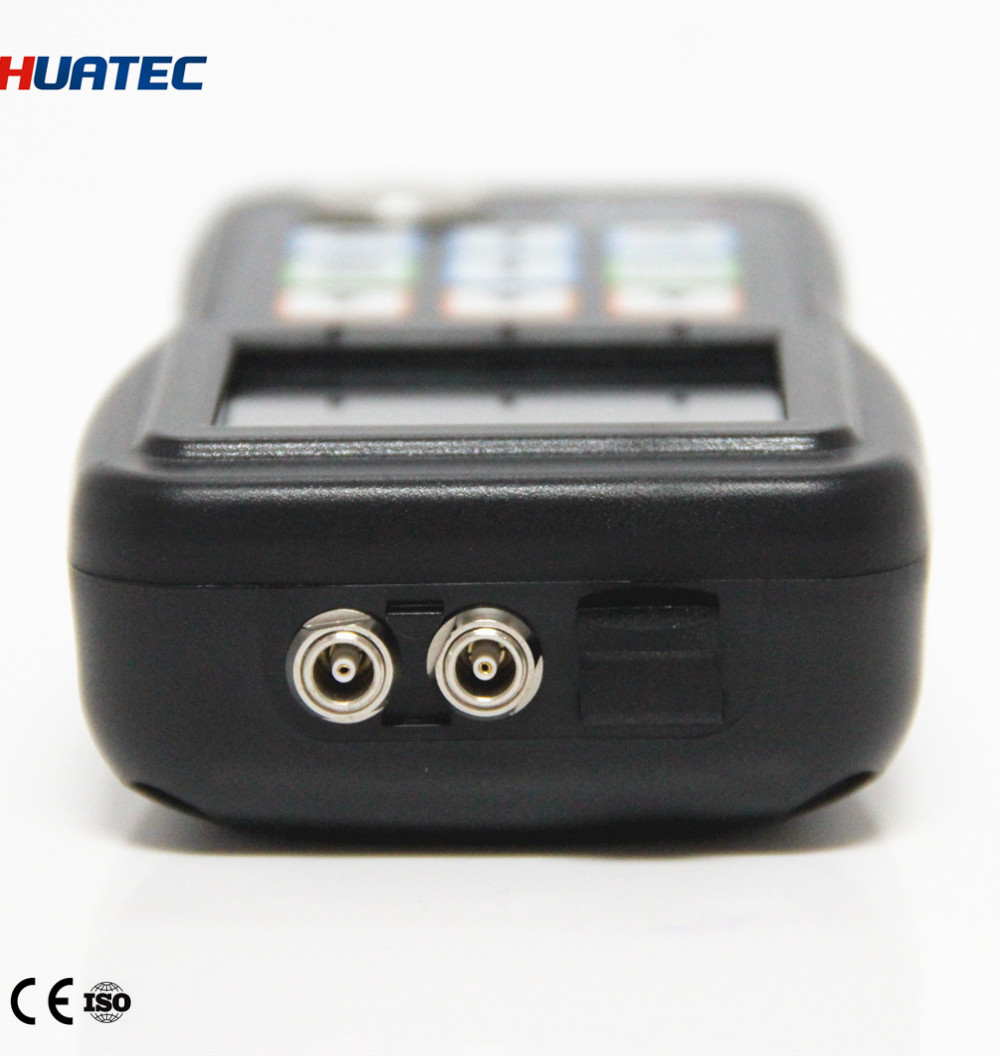

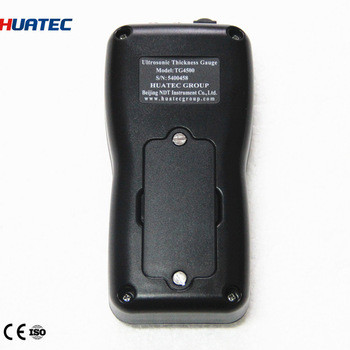

Digital Portable Ultrasonic Through Coating Thickness Gauge TG4500

Brand Name : HUATEC

Model Number : TG-4500

Certification : CE ISO

Place of Origin : CHINA

MOQ : 1set

Payment Terms : T/T, Western Union,PAYPAL

Supply Ability : 500 Set per month

Delivery Time : 3-5 work days

Packaging Details : asb plastic+carton

Display : Color 320x240 Pixels

Gain : Low, Medium or High for varying test conditions

Measuring Range : 0.60mm to 508mm(0.025" to 20.00"), depending on material, probe and surface condition

Measuring Resolution : Selectable 0.01mm, 0.1mm(selectable 0.001", 0.01")

Display Mode : Normal, Minimum / Maximum capture, DIFF/RR%

Update Rate : Selectable 4Hz, 8Hz, 16Hz

Material Velocity Range : 500 to 9999m/s (0.0197 to 0.3937in/us)

Power Requirements : 2 AA size batteries

Contact Now

TG-4500 Series Ultrasonic Thickness Gauge

Digital Portable Ultrasonic Through Coating Thickness Gauge TG4500Digital Portable Ultrasonic Through Coating Thickness Gauge TG4500Digital Portable Ultrasonic Through Coating Thickness Gauge TG4500Digital Portable Ultrasonic Through Coating Thickness Gauge TG4500Digital Portable Ultrasonic Through Coating Thickness Gauge TG4500

Features:

Color 320x240 Pixels Display

A-Scan Snapshot

Echo-Echo Mode(Thru Paint & Coatings)

Stores 100,000 Readings
Gain: Low, Medium or High for varying test conditions

Technical Specifications

Feature TG-4500 TG-4500D TG-4500DL Data Logger Option
Color Display
A-Scan Snapshot
Gain: Low, Medium, High
Min/Max Capture
DIFF/RR%
Thru-paint X
Data Logger X X
DataView Software X X

Instrument Specifications
Display Type 2.4" color OLED, 320 X 240 pixels, contrast 10,000:1
Operating Principle Pulse echo with dual element transducers
Measuring Range 0.60mm to 508mm(0.025" to 20.00"), depending on material, probe and surface condition
Measuring Resolution Selectable 0.01mm, 0.1mm(selectable 0.001", 0.01")
Units Inch or Millimeter
Gain Low, Medium or High for varying test conditions
Display Mode Normal, Minimum / Maximum capture, DIFF/RR%
V-Path Correction Automatic
Update Rate Selectable 4Hz, 8Hz, 16Hz
Material Velocity Range 500 to 9999m/s (0.0197 to 0.3937in/us)
Languages Selectable Chinese, English, Japanese
Alarm Settings Minimum and Maximum alarms. Range of 0.25 mm to 508 mm (0.010" to 20.00"). Dynamic waveform color change on alarm
Power Requirements 2 AA size batteries
Operating Time Approximately 40 hours
Instrument Shut-off Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity
Operating Temperature -10°C to +50°C (+10°F to +120°F)
Size 153mm X 76mm X 37mm(H X W X D)
Weight 280g including batteries

Data Logger Option Features
Capacity 400 files, 100,000 readings
File Structure Grid file
Rows X Columns 21 X 12
Communication Port USB 2.0 (Full Speed ) port
Software DataView PC software

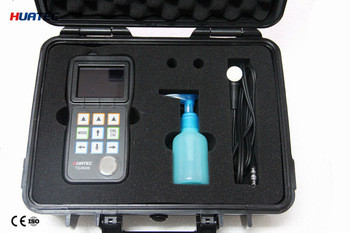

Standard accessories

Thickness Gauge 1
Probe 1
Alkaline Battery 2
Couplant 1
Carrying Case 1
Operation Manual 1
USB Cable 1(Only TG-4500DL)
Software CD 1(Only TG-4500DL)

Optional accessories

High-temperature Probe Cast Iron Probe
Small Probe Mini Probe
Probe Cable Stepped Calibration Block
Rubber Sheath Storage Option(Only TG-4500DL)

TG-4500 series Probe/Transducer Specifications
Model PT08 TC510 PT12 ZT12 PT06 PT04 GT12
Type TG-4500 Standard TG-4500D/DL Standard Standard Cast iron Small tube Fingertip High-Temperature
Frequency 5MHz 5MHz 5MHz 2MHz 7.5MHz 10MHz 5MHz
Contact Diameter 11mm 13.5mm 13.5mm 17mm 8mm 6mm 15mm
Measurement Range 0.8 to
100.0mm		 1.2 to
200.0mm		 1.0 to 200.0mm 4.0 to
508.0mm		 0.8 to
30.0mm		 0.7 to 12.0mm 4.0 to
80.0mm
Temperature Range -10 to 70℃ -10 to
70℃		 -10 to 70℃ -10 to 70℃ -10 to
70℃		 -10 to 70℃ -20 to 300℃
