HLT-210+ Concrete Cover Thickness Reinforcement Position Tester

Name: HLT210 Concrete Cover Thickness Reinforcement Position Tester
Brand: HUATEC
Price: 920 USD

Quality HLT-210+ Concrete Cover Thickness Reinforcement Position Tester wholesale

Brand Name : HUATEC

Model Number : HLT-210+

Certification : CE

Place of Origin : China

MOQ : 1 pc

Price : USD920/set - USD1040/set

Payment Terms : T/T,Paypal

Supply Ability : 10sets/Month

Delivery Time : 7-10 working days after receipt of your payment

Packaging Details : Carton packing box

Bar diameter application range(mm) : Φ6 – Φ50

maximum value permissible error of Bar diameter : ≤±1

first measuring range (mm) : 6 - 90

second measuring range (mm) : 7-180

Contact Now

HLT-210+ Concrete Cover Thickness Reinforcement Position Tester

Features

·investigation depth could reach 180mm

·Single comprehensive probe. No need to replace during test.

·back-lit screen let instrument can be normal used under the condition of insufficient light

·Machine software is complete .The report could be printed automatically connecting with computer

Technical Specification

Bar diameter application range(mm)				Φ6 – Φ50
maximum value permissible error of Bar diameter				≤±1
Protective layer thickness measuring range
The first measuring range (mm)				6 - 90
The second measuring range (mm)				7-180
The maximum error of reinforced protective layer thickness test value
The first measuring range (mm)	The second measuring range (mm)
6 - 59	7 - 79			≤±1
60 - 69	80 - 119			≤±2
70 -90	120 - 180			≤±4

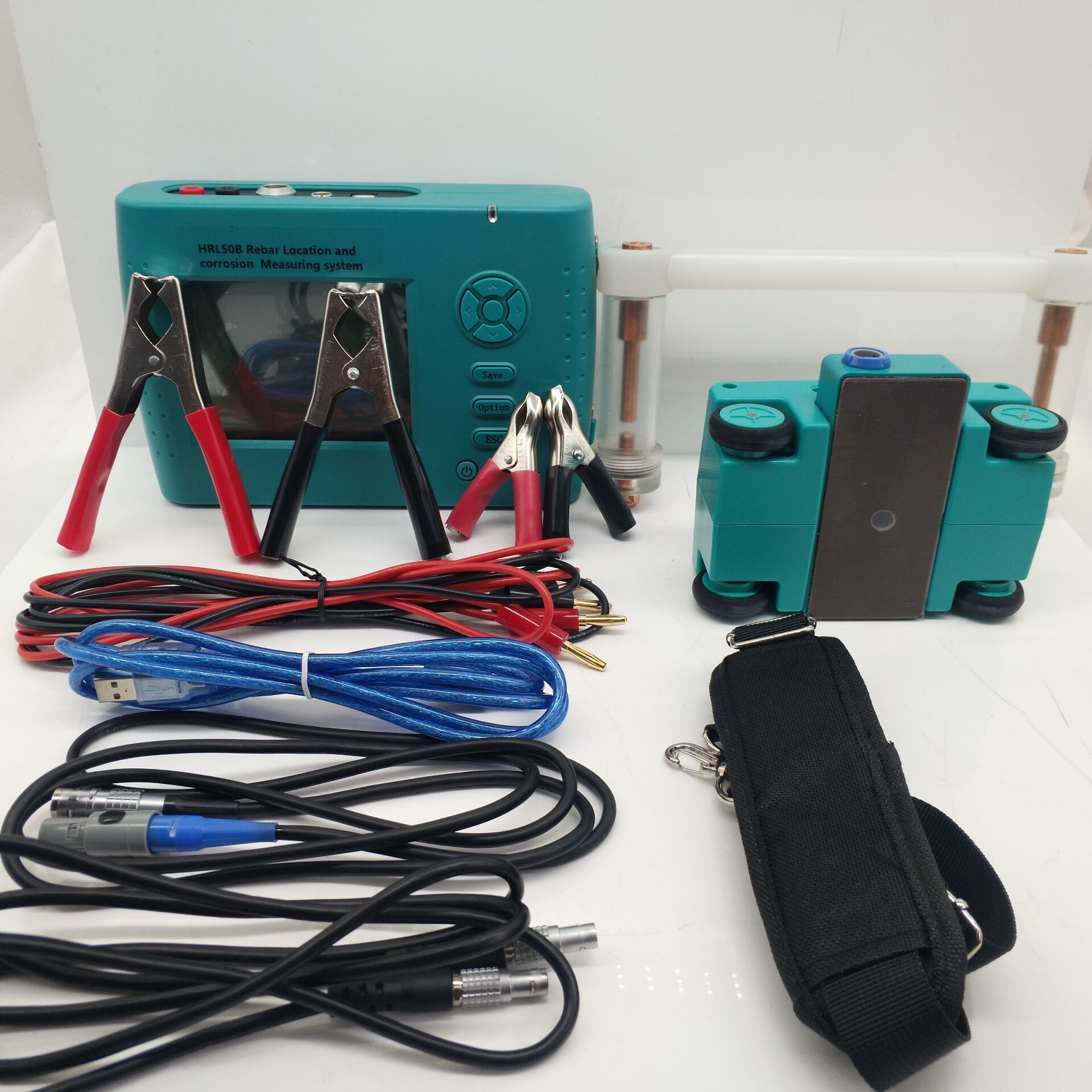

Standard Delivery			Optional Accessory
Main unit, Software USB connecting cable Power charger Carborundum stone Instruction manual Warranty card		1 1 1 1 1 1	Printer Power Charger for printer (9V/2V)

Work environment condition

No strong alternating electromagnetic field

No corrosive gas in the air.

Avoid larger vibration and impact
Avoid the LCD panel contact with sunlight directly

Product usage
Testing concrete cover thickness
Test concrete member internal reinforcement position; rebar spacing, reinforcement position distribution.
Estimation bar diameter
Detection of Cable and Plumbing pipe
