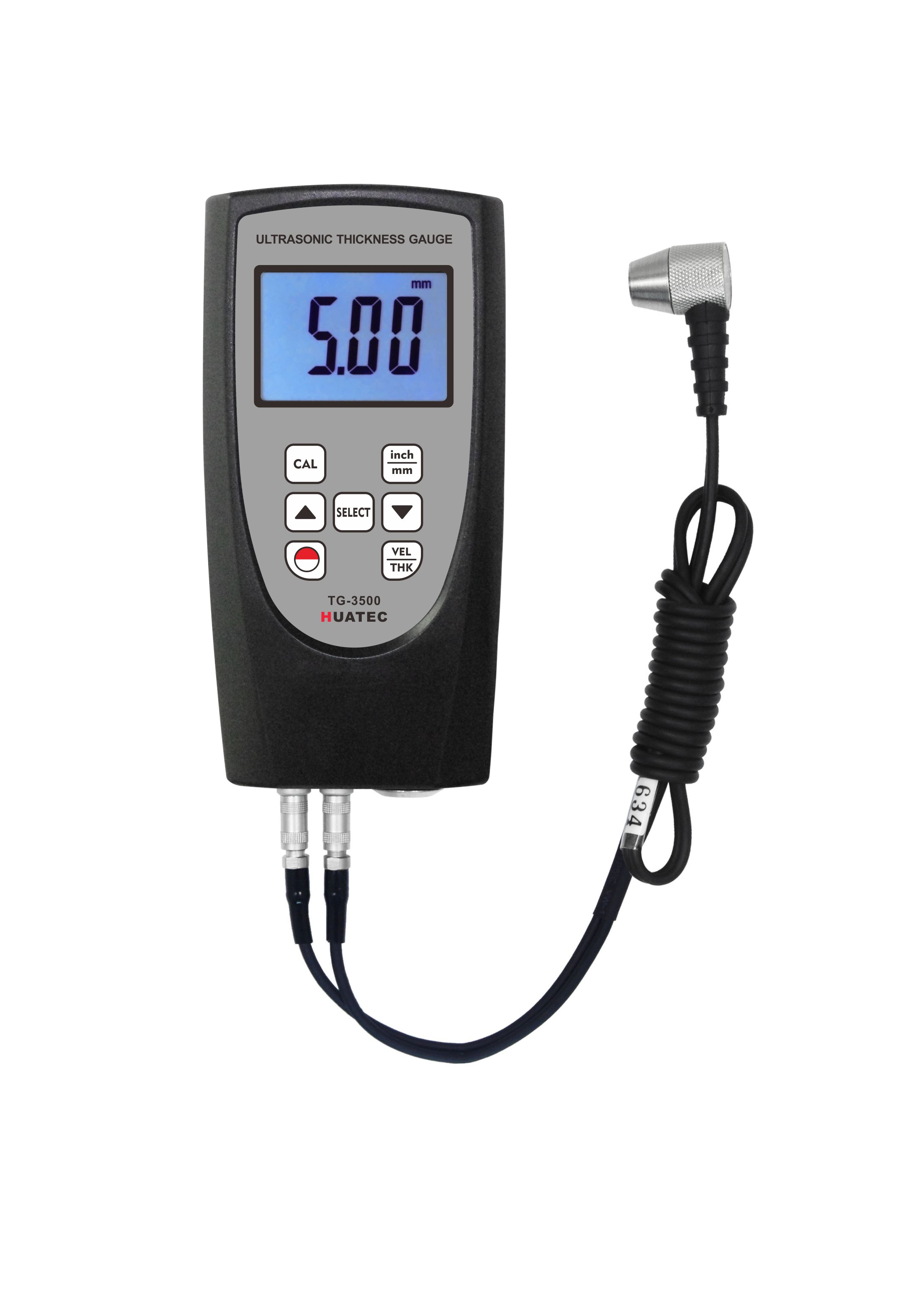

400mm Bluetooth Ultrasonic Wall Thickness GaugeTG-3500 4 Digit 10 mm LCD

Name: 400mm Bluetooth Ultrasonic Wall Thickness GaugeTG3500 4 Digit 10 mm LCD
Brand: HUATEC
Price: 300 USD

Quality 400mm Bluetooth Ultrasonic Wall Thickness GaugeTG-3500 4 Digit 10 mm LCD wholesale

Brand Name : HUATEC

Model Number : TG-3500

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : USD300-USD400

Payment Terms : T/T, Western Union, L/C

Supply Ability : 400 sets per month

Delivery Time : 3 working days

Packaging Details : carton, 1kg

Range : 0.75-400mm

Display : 4 Digit, 10 mm LCD

Operating Principle : Ultrasonic

Battery Indication : Low Battery Indication

Sound Velocity : 1000~9999 m/s

Resolution : 0.1mm / 0.01mm / 0.001inch

Contact Now

Non Destructive Testing Equipment 400mm Bluetooth Ultrasonic Wall Thickness GaugeTG-3500 4 Digit 10 mm LCD

Used for measuring thickness and corrosion of pressure vessels,chemical equipment, boilers,oil storage tanks,etc.in industries of petroleum, shipbuilding,power station,and machine manufacturing.

Features
* Using the latest high performance and low power consumption microprocessor technology.
* Automatic memory material code and sound velocity value, convenient to use.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output”

Specifications

Display	4 Digit, 10 mm LCD
Operating Principle	Ultrasonic
Measuring Range (metric / Imperial)	0.75~400mm (45# steel) (Depend on Probe)
Battery Indication	Low Battery Indication
Sound Velocity	1000~9999 m/s
Lower Limit Steel Pipes	Φ15 x 2.0 mm Φ20 x 3.0 mm determined by transducer
Calibration Block	Included
Resolution	0.1mm / 0.01mm / 0.001inch
Accuracy	± (0.5%n + 0.1)
Power off	Auto Power off & Manual Power Off
Operating Conditions	Temperature: 0~40 °C, Humidity: < 85 %RH
Power Supply	4 x 1.5 V AAA (UM-4) Battery
Dimensions	140 x 72 x 34 mm
Weight	185 g (Not Including Batteries)

Standard Delivery:
1. Main Unit
2. 5MФ8 Standard Sensor
3. Coupling Agent
4. Carrying Case
5. Operating Manual

Optional Accessories:
1. 6M Φ6 mm thin Material Probe : Measuring range (steel): 1.0~50.0 mm Operating temperature: -10~60°C
2. 5M Φ12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature) Measuring range (steel) : 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C
3. Curved Surface Probe
4. USB, RS-232C data cable with software
5. Bluetooth data output with software
