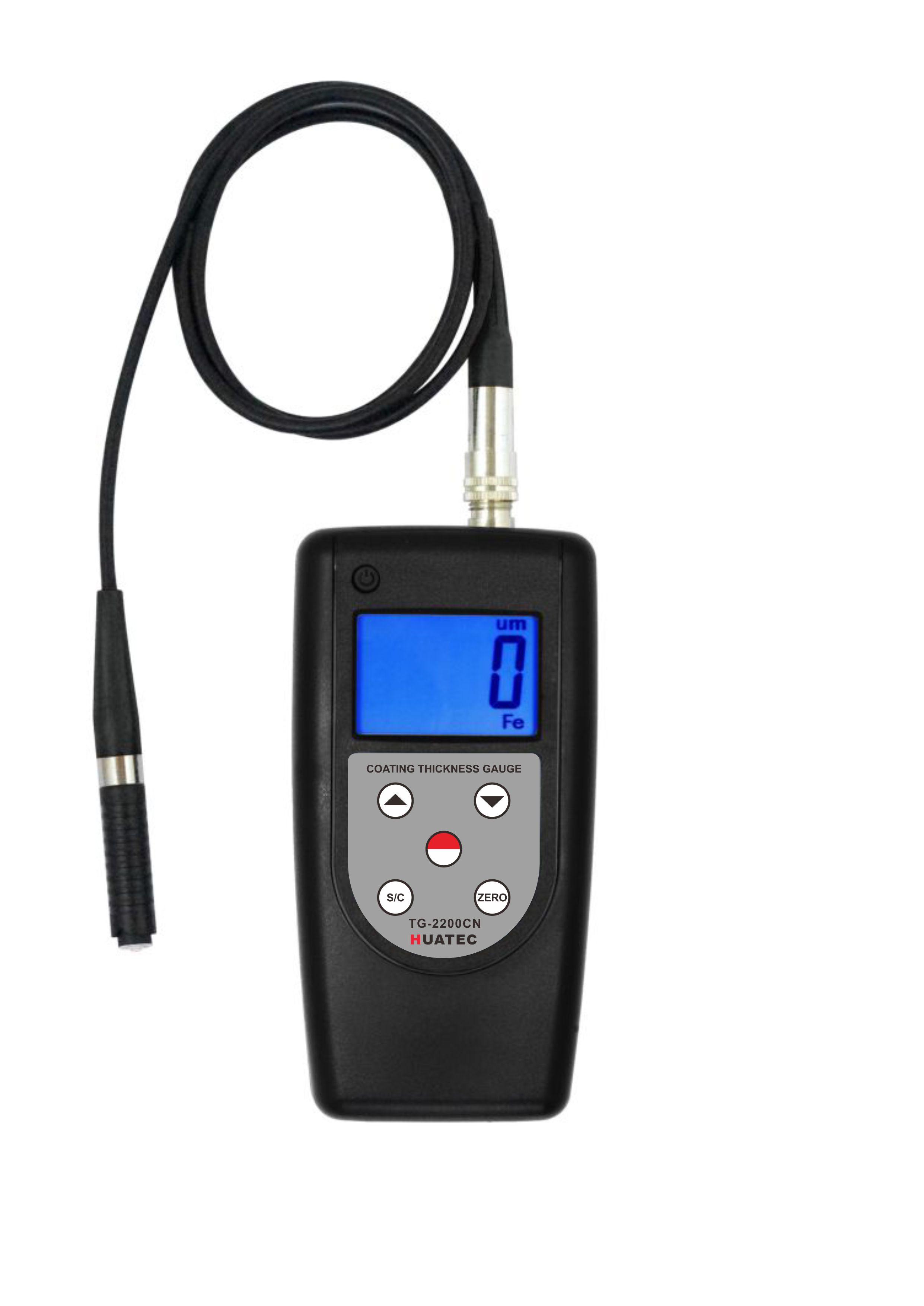

Portable Eddy Current Coating Thickness Tester Gauge TG-2200CN Bluetooth / USB Data
Applications:
The TG-2200CN measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.
Features Details Accessories
* Specially for the thickness measurement of coating on small work piece.
* Measuring methods: eddy current (N).
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Auto memory of calibration value, and auto recognize the substrate.
* Operation process have buzzing reminder, while no buzzing in continuous mode.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth data output” choice.
* Separate Type can provide several type probe, measure can be more flexibility.
| Operating Principle | Eddy Current (NF) |
| Measuring Range | 0~200 um / 0~8 mil |
| Resolution | 0.1 um |
| Min. Radius Workpiece | convex 2 mm / concave 4 mm |
| Min. Measuring Area | 2 mm |
| Min. Sample Thickness | 0.1 mm |
| Accuracy | ± 1~3%n or ± 2.5 um |
| Auto Power Off | |
| Metric / Imperial | Convertible |
| Battery Indicator | Low Battery Indicator |
| Operating Conditions | Temp. 0~40 °C, Humidity: 10~90 %RH |
| Power Supply | 4 x 1.5 V AAA (UM-4) Battery |
| Dimensions | 140 x 72 x 34 mm ( 5.5 x 2.8 x 1.3 inch ) |
| Weight | 215 g (Not Including Batteries) |
Standard Accessories:
1. Main Unit

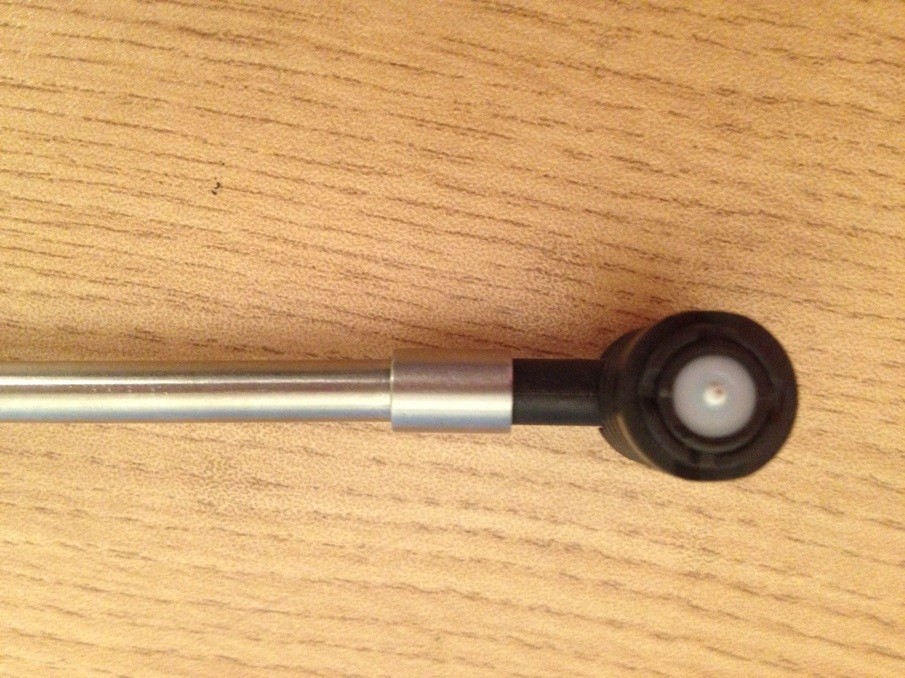

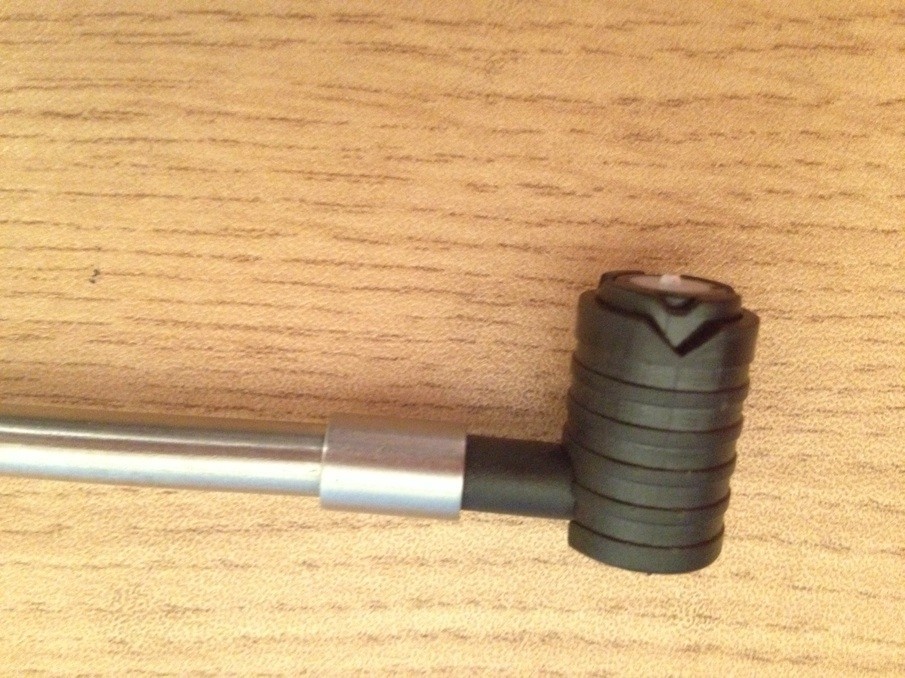

2. Probe (NF Type)
3. Calibration Base Set (NF Type)
4. Calibration Foils (1 set, 4 pieces)
5. Carrying Case
6. Operation Manual
Optional accessories:
1. USB, RS-232C data cable with software
2. Bluetooth data out put with software
