Coating / Finishing Surface Gloss Meter Non Destructive Testing Equipment HGM-BZ60

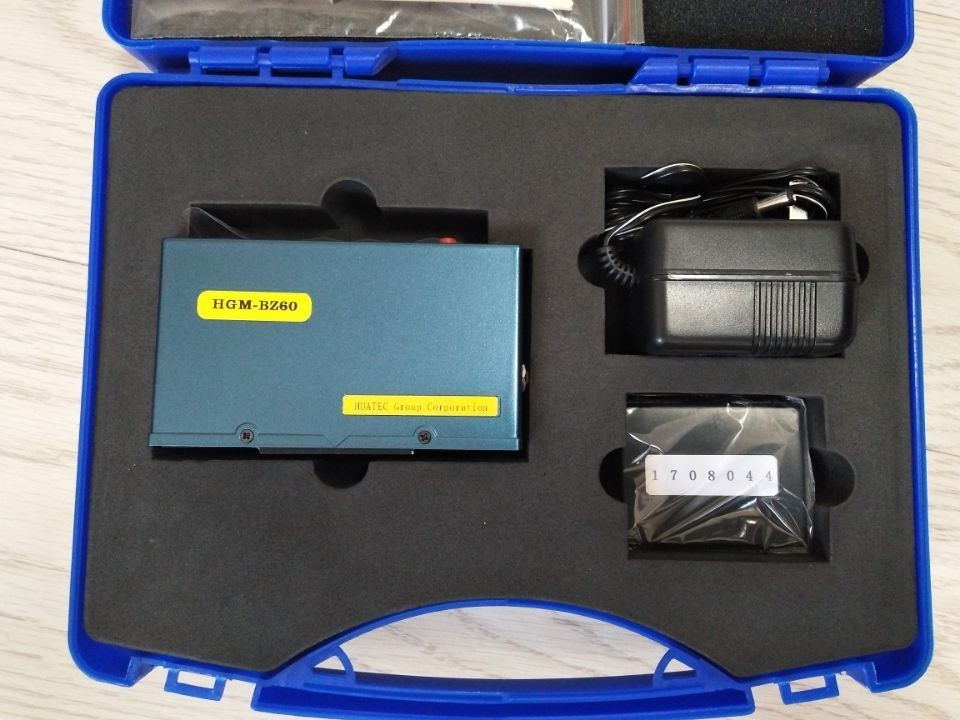

Gloss meter Model HGM-BZ60

Standard

International standard ISO2813, ASTM-D2457, DIN67530 and China standard GB9754, GB9966, GB8807.

The technical parameters follows China metrology standard JJG696-2002.

Application

1. Measurement of Paint and Dope surface gloss on Car, Electronic appliance and Musical instrument industry.
2. Measurement of floor board, marble, granite and ceramic tile gloss on architecture, decoration industry.
3. Measurement of printing ink and paper on Printing and Casing industry.
4. Measurement of the others need to be measured.
5. Hard drawn aluminum alloys

Features

1. Small and light, real easy to be carried and used.
2. One 1.5 mignon alkaline Battery can be used for almost 60 hours and 10000 reading.
3. High stability
4. Long-term stable light source needs no replacing for ever.
5. Quartz crystal standard board, no excursion.

Parameter

1.Measuring range 0.0－300.0Gs

2.Readout error ＜1.2Gs

3.Stability 0.4 Gs/30minutes

4.Measureing window size 14mm (short axle) ×28mm( long axle)

5.Size 114×35×65mm

6.Working voltage 1.5V
